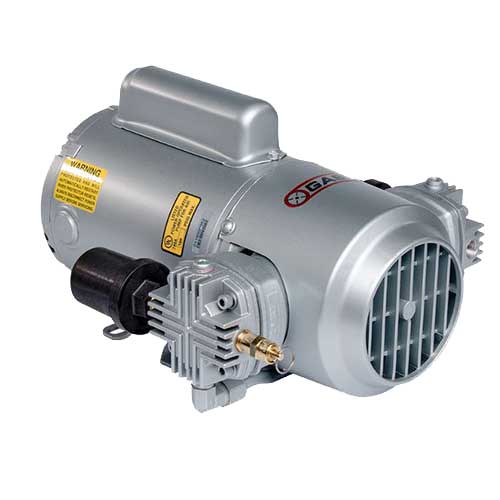

Air Compressor GAST 3H/4H/5H/6H Series

Gast air pump model 3H/4H/5H/6H is a non-lubricating oil pump. Is small and compact Long service life The motor provides high torque. Corrosion resistant interior The piston ring is manufactured with Teflon which helps reduce friction at work as well. Suitable for use in fire fighting systems Imported from America

Facebook
Twitter
Email
Print



Air Compressor GAST 3H/4H/5H/6H Series

GAST 3H/4H/5H/6H Series 3HBE-10M303X,4HCJ-10-M451X,5HCE-10-M551X,6HCN-10-M618X

GAST 3H/4H/5H/6H Series qualification

  • Is a system pump without oil for lubrication
  • The motor is a direct connection system
  •  Easy maintenance

GAST 3H/4H/5H/6H Series Specifications

GAST 3H/4H/5H/6H Series 3HBE-10M303X,4HCJ-10-M451X,5HCE-10-M551X,6HCN-10-M618X

Model GAST 3HBE-10M303X GAST 4HCJ-10-M451X GAST 5HCE-10-M551X GAST 6HCN-10-M618X
Motor HP (V) 1/3 (220) 1/2  (220) 3/(220) 1 (220 )
Max Pressure psi 100 100 100 100
Max Vacuum Hg
Max Flow cfm 2.75 3.5 4.7 5.4
WxLxH mm 555x330x148 312x381x226 310x368x226 310x442x227
