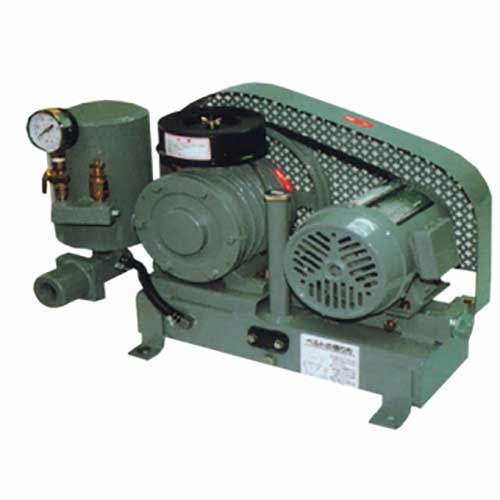

Air Blower sanco BRF BRH

Root Blower SANCO BRF/BRH Series

Sanco Air Blower Series BRF / BRH are rotary vane systems. Small and compact Used for aeration in fish ponds in shelters. Good quality, durable products

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Root Blower SANCO BRF/BRH Series

SANCO BRF-250T,BRF-300T,BRH-400T,BRH-500T,BRH-650T,BRH-800T,BRH-1100T,BRH-1400T,BRH-1800T,BRH-2700T,BRH-4200T

เครื่องเติมอากาศ ระบบใบพัดโรตารี

Air Blower Rotary propeller system

  • Uniform wind volume due to the number of blades in the fan out of
  • Low noise because of low speed And the rotary propeller is small
  • Compact size Because the sound produced is weak Eliminating the need to use additional soundproofing devices
  • Easy maintenance No need to change oil. (Add more oil) because the oil is not in the rotary part.
  • Long life of the belt Because the aerator Use low rpm

SANCO BRF/BRH Series Specifications

SANCO BRF-250T,BRF-300T,BRH-400T,BRH-500T,BRH-650T,BRH-800T,BRH-1100T,BRH-1400T,BRH-1800T,BRH-2700T,BRH-4200T

รุ่น SANCO BRF-250T SANCO  BRF-300T SANCO  BRH-400T SANCO  BRH-500T SANCO  BRH-650T SANCO  BRH-800T SANCO  BRH-1100T SANCO  BRH-1400T SANCO BRH-1800T SANCO  BRH-2700T SANCO BRH-4200T
HP 0.5 0.5 1 1 1 2 2 3 3 5 7.5
Voltage (V) 220V/380V
RPM (rpm) 540 450 520 650 500 580 430 500 450 390 390
Dept (m) Airflow rate
1mH2O 265 310 420 510 660 800 1140 1440 1900 2820 4320
2mH2O 250 300 410 500 650 770 1120 1420 8870 2740 4280
3mH2O 237 290 400 490 630 740 1090 1390 1820 2660 4250
4mH2O 225 280 390 48 610 710 1060 1360 1770 2540 4180
5mH2O 215 270 380 0 590 670 1020 1320 1710 2500 4100
Diameter of Discharge 3/4 “ 3/4 “ 1 1 1 1/4 1 1/2 1 1/2 2 2 1/2 3 1/2 3  1/2
Noise Level (dba) 59 58 60 61 62 63 66 67 69 72 75
Quanlity Of oil (liter) 1.2 1.5 1.5 1.5 2.5 2.5 3.5 3.5 5.5 8 320
Weight (kg) 47 48 50 50 80 85 120 125 190 250 375
