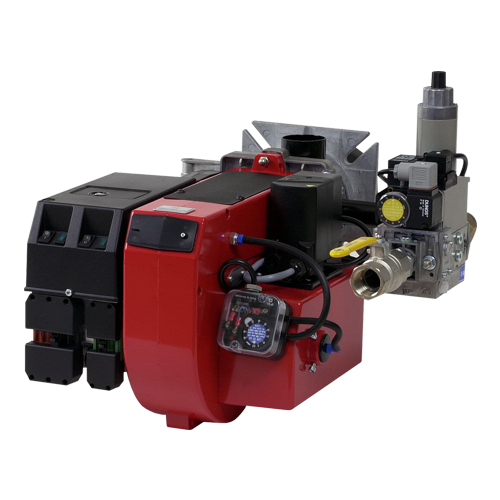

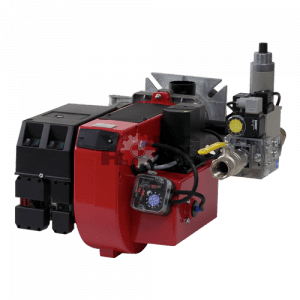

Gas Burner One stage BENTONE BG300

Gas Burner One stage BENTONE BG300  is a gas burner designed for use in gas combustion systems. It features a single-stage combustion capability, making it easy to operate and adjust flame height according to requirements. The BENTONE BG300 is known for its durability and suitability for various applications and environments.


Gas Burner One stage BENTONE BG300

Available in versions up to 190 kW, 1-stage (2-stage and modulating versions also available).

BG300 is equipped with hinged flange. Slow opening solenoid valve.

Gas connection left or right. Recommended for over- and under-pressure boilers. Design for easy maintenance. Energy saving. When biogas is used, Bentone shall always be contacted.

Gas Burner

– Energy saving and compatible with environmental requirements

– Quiet in operation and designed for easy maintenance

– Reliable and trouble free

– Designed and approved in accordance with the European standard EN 676

– 1-stage, 2-stage or modulating

– Plug-in contact facilitates the installation

– Two valves, slow opening

– Hinged flange

– Gas connection left or rigth

– Available for natural gas, LPG, town gas, biogas

– When biogas is used, Bentone shall always be contacted


Type BG300 BG300-2,M BG400 BG400-2,M
Capacity kW 60-190 60-190 60-318 60-318
Motor V/Hz/W 230/50-60/180 23/50-60/250
Cntrol unit Siemens
Max. inlet pressure 360
Fittings Dungs GasMuiltiBloc
Flame monitoring Ionisation
Air damper motor .
Ball valve .
Pressure gauge .
Leakage control .
Regulator RM 16 .
Gross weight kg c. 25 27 29 32
Volume m³ c. 0.16 0.15 0.13 0.16

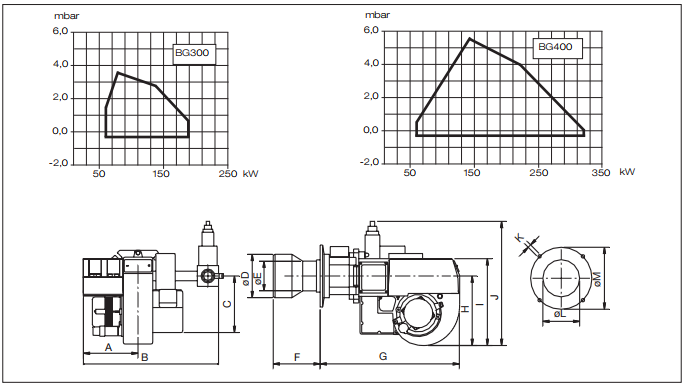

BG300 4
