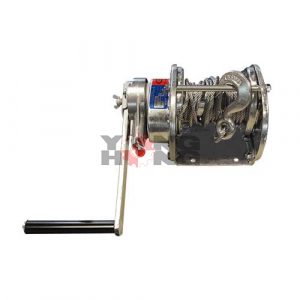

Steel hot dip galvanizing Hand winch MAXPULL MR-GS series

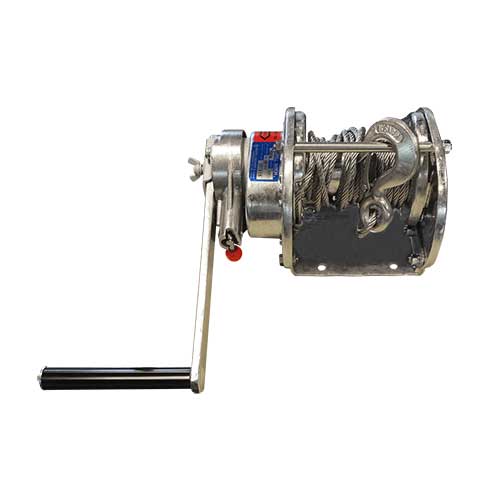

Steel hot dip galvanizing Hand winch MAXPULL MR-GS series Rust-proof Hand winch MAXPULL MR-GS series high quality products imported from japan (Made in japan)is a sling winch designed to be rotated 360 degrees and can be rotated in the clutch as well Making it possible to support installation in narrow spaces such as wall mounting And installed on the floor.Maxpull MR-GS series is available in are total 6 models.

Category
Facebook
Twitter
Email
Print

Steel hot dip galvanizing Hand winch MAXPULL MR-GS series

Steel hot dip galvanizing Hand winch MAXPULL MR-GS series Rust-proof Hand winch MAXPULL MR-GS series It has excellent rust-proof,salt tolerance,is a ratchet handle winch and using left-right motion of the handle to perform lifting and lowering,and can be installed directly in cramped locations where handle cannot be rotated such as well and floor.

FEATURES

  • Excellent rust-proof,salt tolerance,and lower cost than stainless steel.
  • The stay bolt,bolts,screws,nuts,retaining ring,and spring are made of SUS-304
  • The part for hot dip galvanizing are side frame A,side frame B,bed plate,cluth cover and handle arm.
  • Chromate plating is applied to the stopper,clutch and handle holder and then Roval Silver is painted over it.
  • The shaft is chromate plated and only the tip of the shaft is painted with Roval Silver.



DRAWING

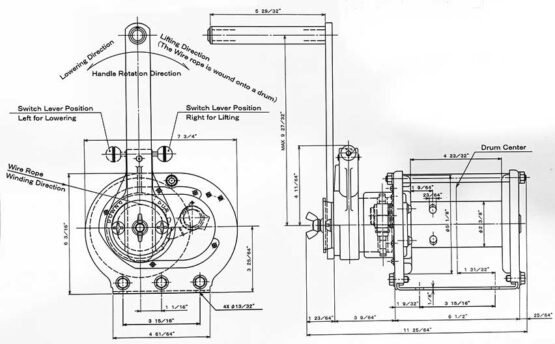

Drawing-MR-1-GS-SI-25-11-62



MAXPULL MR-GS Series Specifications

ModelCapacityDrum CapacityHandle Length(Effective Max.)Winding Layer Number of Wire Rope
MR-1-GS-SI100 kg5 mm x 35 m(6 Layers Winding)250 mm1st Layer: 143N (14.6 kgf)
3rd Layer: 187N (19.0 kgf)
4th Layer: 208N (21.2 kgf)
MR-3-GS-SI300 kg6 mm x 32 m(6 Layers Winding)250 mm1st Layer: 76N (7.7 kgf)
3rd Layer: 103N (10.5 kgf)
5th Layer: 131N (13.3 kgf)
MR-5-GS-SI500 kg6 mm x 40 m(6 Layers Winding)250 mm1st Layer: 109N (11.1 kgf)
3rd Layer: 142N (14.4 kgf)
5th Layer: 174N (17.7 kgf)
MR-10-GS-SI1,000 kg8 mm x 35 m(5 Layers Winding)300 mm1st Layer: 133N (13.5 kgf)
2nd Layer: 157N (16.0 kgf)
3rd Layer: 182N (18.5 kgf)
MR-20-GS-SI2,000 kg9 mm x 38 m(5 Layers Winding)370 mm1st Layer: 157N (16.0 kgf)
2nd Layer: 186N (18.9 kgf)
3rd Layer: 214N (21.8 kgf)
MR-30-GS-SI3,000 kg12 mm x 35 m(4 Layers Winding)370 mm1st Layer: 137N (13.9 kgf)
2nd Layer: 169N (17.2 kgf)
3rd Layer: 201N (20.5 kgf)
