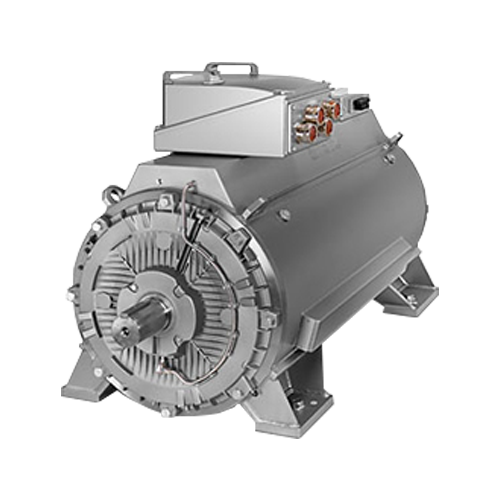

มอเตอร์ SIMOTICS HV C water-jacket-cooled SIEMENS

The SIMOTICS HV C water-jacket-cooled is the new high voltage motor, which as a result of its optimized cooling concept, has been made even more compact – making it the ideal solution for applications where space is restricted. At the same time, the motor is predestined for extreme installation locations as dirty, aggressive and salt-laden air is reliably prevented from entering the motor. Further, it allows the dissipated heat to be recovered and used in the process itself.

Additional optimization has also resulted in a lighter design, even quieter operation and a further improved vibrational behavior, which ensures smooth operation and in turn maximum service life for the plant or system. These motors also set themselves apart as a result of the extremely short delivery times – and high on-time delivery for this power class.



  • Optimized cooling system for uniform and even cooling – where hotspots are reliably avoided
  • Extremely high power density for a space-saving design
  • Low weight
  • Integrated cable routing
  • Vibration-optimized mounting foot design
  • Predestined for energy-saving converter operation as a result of the optimized cooling system
  • Extremely low maintenance water jacket cooling system
  • Very short delivery times with high on-time delivery
  • Data matrix code so that mobile devices can quickly and simply access individual motor data
  • Condition data can be analyzed using digital service concepts, also cloud based

Your advantages

  • Valuable space is freed up for applications where space is restricted, e.g. onboard ships and offshore platforms
  • Completely insensitive with respect to pollution, chemicals and salt mist
  • Improved energy efficiency of the complete plant or system
  • Lower transport and installation costs
  • Extremely long lifetime as a result of the optimized temperature distribution
  • Further optimized work conditions as a result of the very quiet operation
  • Extremely reliable with a long service life
  • Optimized vibration behavior for extended plant and system lifetimes
  • Minimized cabling costs
  • Increased flexibility in plants and systems and simplified installation as a result of the variable terminal box position
  • Accelerated project execution for fast time-to-market
  • Maximum system transparency and higher productivity by integrating into digital system concepts

Technical data overview

Brief overview

Power range: 1.1 – 3.1 MW
Shaft height: 450 – 560 mm
No. of poles: 2 – 8
Voltage range: 690 V – 11 kV
Degree of protection: IP55 – IP66
Cooling type: IC71 W
Operation mode: VSD / DOL
Explosion proof:
