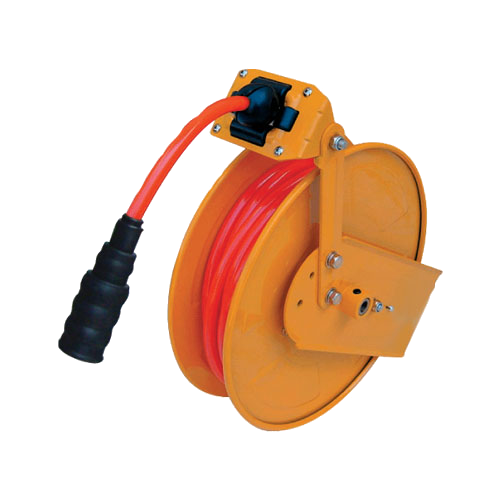

Air Hose Reel TWISTER RA-N Series
TWISTER RA-610NRA-615NRA-620NRA-625NRA-630NRA-810NRA-815NRA-820NRA-825NRA-830NRA-1110NRA-810NFRA-815NFRA-820NFRA-825NF
- Use:Car service center,Industrial site,Laboratory
- Feature:Light weight frame,Flexible hose,Easy installation
- Installation:Wall,Ceiling(Within 4M height,If installed over 4M,it could not rewind.)
TWISTER RA-N Series Specifications
TWISTER RA-610NRA-615NRA-620NRA-625NRA-630NRA-810NRA-815NRA-820NRA-825NRA-830NRA-1110NRA-810NFRA-815NFRA-820NFRA-825NF

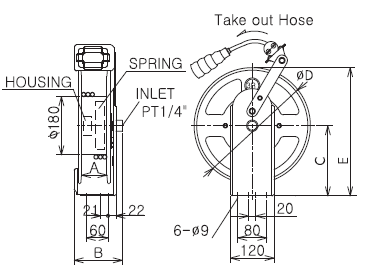

| MODEL | HOSE | W.P | External Size (mm) | Weight (kg) | ||||||
| MATERIAL | I.D-O.D (Ø) | L (M) | Max (kg/cm2 ) | E | A | B | C | D | ||
| RA-610N | PU | 6.5 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 6.4 |
| RA-615N | PU | 6.5 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 7 |
| RA-620N | PU | 6.5 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 7.6 |
| RA-625N | PU | 6.5 | 25 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-630N | PU | 6.5 | 27 | 15 | 353 | 76 | 135 | 223 | 350 | 7.5 |
| RA-810N | PU | 8 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 6.7 |
| RA-815N | PU | 8 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 7.5 |
| RA-820N | PU | 8 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-825N | PU | 8 | 25 | 15 | 398 | 76 | 135 | 223 | 350 | 8.3 |
| RA-830N | PU | 8 | 27 | 15 | 398 | 76 | 135 | 223 | 350 | 8.5 |
| RA-1110N | PU | 11 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 7.6 |
| RA-810NF | Synthetic Rubber | 8 | 10 | 15 | 353 | 76 | 135 | 193 | 320 | 8 |
| RA-815NF | Synthetic Rubber | 8 | 15 | 15 | 353 | 76 | 135 | 193 | 320 | 8.4 |
| RA-820NF | Synthetic Rubber | 8 | 20 | 15 | 353 | 76 | 135 | 193 | 320 | 9 |
| RA-825NF | Synthetic Rubber | 8 | 25 | 15 | 398 | 76 | 135 | 223 | 350 | 11.7 |
