สวิตช์ควบคุมแรงดัน (Pressure Switch) DANFOSS KP-35

Pressure Switch DANFOSS KP-35

DANFOSS pressure switches model KP-35 are used for regulating, monitoring and alarm systems in the industry. They can also be used to start/stop compressors and fans for air-cooled condensers. They are suitable for single pole switch changeover (SPDT) and can control single phase AC motor of up to 2 kW directly.



Categories , Tags , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Pressure Switch  DANFOSS KP-35

Feature

  • Wide regulating range
  • Small dimensions Space-saving, easy to install in panels
  • Shock and impact resistant
  • Ultra-short bounce time. Limits wear to an absolute minimum and increases reliability
  • Snap action electrical contacts minimize chatter ,bounce, and wear, and ensure long term electrical and mechanical reliability
  • Electrical connection from front of the unit. Makes rack mounting easier and also saves space
  • Suitable for alternating current and direct current
  • Screwed wiring, makes rewiring easy
  • Manual trip allows electrical function test without tools
  • Versions with automatic and manual reset available

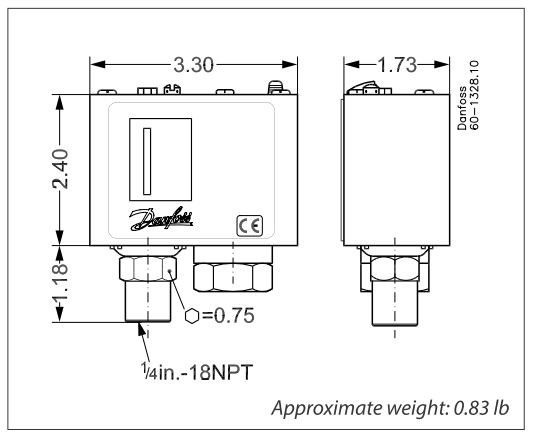

Dimensions DANFOSS KP-35

DIMENSIONS DANFOSS KP 35

Specifications DANFOSS KP-35

Model

Range

(psig)

 Differential (psi) Reset Pressure Connection Max operating pressure (psig) Min burst pressure (psig)
Danfoss KP 35 6-50 6-32 Autometic ¼” 18 NPT 145 1015
