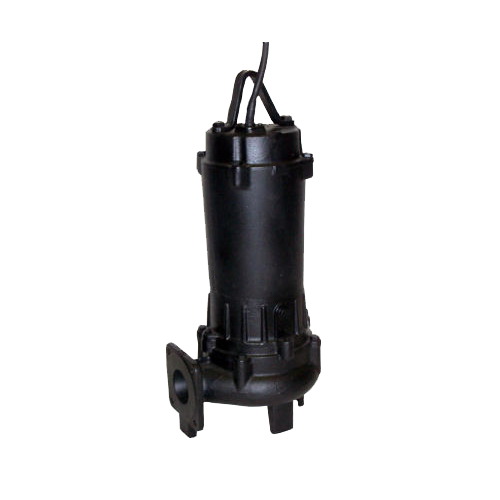

SUBMERSIBLE PUMP EBARA DVS Series
APPLICATIONS
- ldeal for waste water applications containing soft or fibrous solids
- Industrial waste water drainage
- Septic effluent
- Miscellaneous drainage
- “Ebara” ปั๊มน้ำไดโว่ สำหรับน้ำเสีย (DVS – DVSA Series)
| Model | Bore | Motor | Phase / | Max.Capacity | Head |
| (mm) | (KW) | Voltage | (L/min) | (M) | |
| 50DVS5.4S | 50 | 0.4 | 1/220 | 80 – 250 | 10-Mar |
| 50DVS5.4 | 50 | 0.4 | 3/380 | 80 – 250 | 10-Mar |
| 50DVS5.75S | 50 | 0.75 | 1/220 | 80 – 200 | 15-Jun |
| 50DVS5.75 | 50 | 0.75 | 3/380 | 80 – 200 | 15-Jun |
| 50DVS51.5 | 50 | 1.5 | 3/380 | 80 – 200 | 15-Sep |
| 80DVS5.75S | 80 | 0.75 | 1/220 | 140 – 400 | 3.8-9.5 |
| 80DVS5.75 | 80 | 0.75 | 3/380 | 140 – 400 | 3.8-9.5 |
| 80DVS51.5 | 80 | 1.5 | 3/380 | 140 – 570 | 4.2-15 |
| 80DVS52.2 | 80 | 2.2 | 3/380 | 140 – 780 | 18-Jun |
| 80DVS53.7 | 80 | 3.7 | 3/380 | 140 – 900 | 23-Jun |
