Submersible Pump TSURUMI KTV Series

Tsurumi Pump KTV model is a water pumping pump, compact, portable, lightweight, uses 3-phase power, suitable for use in construction and foundations. Pumping with sandy soil Mud mixed in water, get quality products from Japan.

Facebook
Twitter
Email
Print

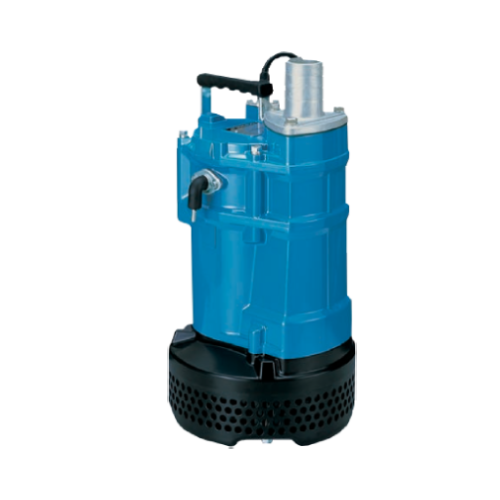

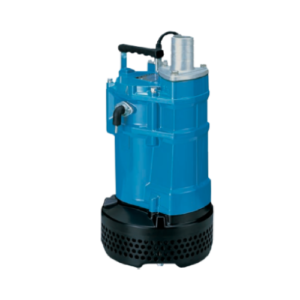

Submersible Pump TSURUMI KTV Series

TSURUMI KTV2-8,KTV2-15,KTV2-22,KTV2-3H,KTV2-37,KTV3-55

Tsurumi KTV-series comes with a submersible pump designed to be lightweight, compact. The pump is made of cast aluminum, which is a huge advantage in terms of lightness. All models of the KTV series are equipped with protective plates to prevent damage to the oil pipes. The blades are semi-vortex type.

Therefore, these Tsurumi pumps are excellent, reliable and durable, which enable continuous operation for a long time



TSURUMI KTV Series Submersible Pump Specifications

TSURUMI KTV2-8,KTV2-15,KTV2-22,KTV2-3H,KTV2-37,KTV3-55

Discharge Bore
mm.
Model Motor output
Kw.
Phase starting
Method
Solid Passage
mm.
Dimensions
L x H

mm.
Dry Weight
Kg.
Cable Length
m.
50 TSURUMI KTV2-8 0.75 Three D.O.L 8.5 200×369 11.5 5
50(80) TSURUMI KTV2-15 1.5 D.O.L 8.5 240×396 21 8
50(80) TSURUMI KTV2-22 2.2 D.O.L 8.5 240×416 23 8
50 TSURUMI KTV2-3H 3.7 D.O.L 8.5 285×510 36 8
80(100) TSURUMI KTV2-37 3.7 D.O.L 8.5 285×510 36 8
80(100) TSURUMI KTV3-55 5.5 D.O.L 8.5 300×545 47 8
