Submersible Pump TSURUMI UZ Series

Tsurumi UZ Series  submersible pump is a Vortex impeller. It provides a 4-pole motor power with a passage for the sediment, which is as large as the discharge pipe. And have the best ability to handle sediment This type of pump allows to work without suffocation in pumping sewage.



Share on facebook
Facebook
Share on twitter
Twitter
Share on email
Email
Share on print
Print

Submersible Pump TSURUMI UZ Series

TSURUMI UZ Series 50UZ41.5,80UZ41.5,80UZ42.2,80UZ43.7,80UZ45.5,80UZ47.5,80UZ411,100UZ43.7,100UZ45.5,100UZ47.5,100UZ411

TSURUMI : Submersible Pumps

Sewage & Wastewater

Led by aruguably the best cutter pump on the market today, our powerful and versatile sewage pumps confirm Tsurumi’s commitment to this growing market segment. Through the use of an adapter, our pumps are compatible with guide rail systems making pump replacement quick and easy while saving you time and money on entire rail systems.

Durable and compact. From our powerful sand and trash handling pumps to our efficient dewatering and residue/utility pumps, Tsurumi can meet your applications.

Let us assist you in choosing the correct model that will handle your needs and save you time and money.

UZ Vortex Impeller Water Pump

The UZ-series is a 4-pole-motor-based, middle-sized submersible vortex pump design for handling raw sewage, wastewater and liquid carrying solid matters and fibrous materials. Rotation of the impeller produces vortex flow in the pump casing, which allows those foreign matters to be pumped out with minimum contact to the impeller. Since this mechanism does not require the foreign matters to pass through the impeller vane, the pump offers practically unchokable pumping. The UZ-series is capable of handling the maximum solid size that is equivalent to its discharge bore.

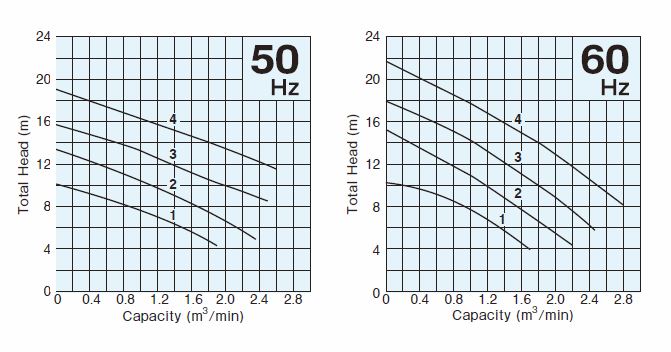

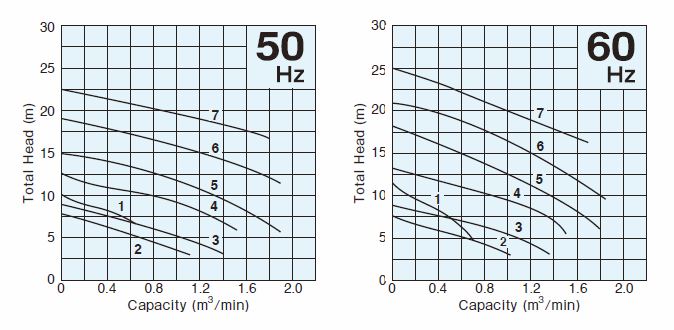

TSURUMI UZ Series Submersible Pump Performance Curve

50-80  mm. Model Selection

100 mm. Model Selection

TSURUMI UZ Series Submersible Pump Specifications

TSURUMI UZ Series 50UZ41.5,80UZ41.5,80UZ42.2,80UZ43.7,80UZ45.5,80UZ47.5,80UZ411,100UZ43.7,100UZ45.5,100UZ47.5,100UZ41111

TSURUMI UZ Series 50-80 mm. Model Selection

Discharge Bore Standard Model Automatic Model Auto-Alternation Model Motor Output Phase Starting Method Solids Passage Cable Length
mm. Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting
TOS TS TOS TS TOS TS kW. mm. m.
50 50UZ41.5 TOS50UZ41.5 TS50UZ41.5 50UZA41.5 TOS50UZA41.5 TS50UZA41.5 50UZW41.5 TOS50UZW41.5 TS50UZW41.5 1.5 Three 1500/1800 50 6
80 80UZ41.5 TOS80UZ41.5 TS80UZ41.5 80UZA41.5 TOS80UZA41.5 TS80UZA41.5 80UZW41.5 TOS80UZW41.5 TS80UZW41.5 1.5 Three 1500/1800 80 6
80 80UZ42.2 TOS80UZ42.2 TS80UZ42.2 80UZA42.2 TOS80UZA42.2 TS80UZA42.2 80UZW42.2 TOS80UZW42.2 TS80UZW42.2 2.2 Three 1500/1800 80 6
80 80UZ43.7 TOS80UZ43.7 TS80UZ43.7 80UZA43.7 TOS80UZA43.7 TS80UZA43.7 80UZW43.7 TOS80UZW43.7 TS80UZW43.7 3.7 Three 1500/1800 80 6
80 80UZ45.5 TOS80UZ45.5 TS80UZ45.5 5.5 Three 1500/1800 80 8
80 80UZ47.5 TOS80UZ47.5 TS80UZ47.5 7.5 Three 1500/1800 80 8
80 80UZ411 TOS80UZ411 TS80UZ411 11 Three 1500/1800 80 8

TSURUMI UZ Series 100 mm. Model Selection

Discharge Bore Standard Model Automatic Model Auto-Alternation Model Motor Output Phase Starting Method Solids Passage Cable Length
mm. Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting
TOS TS TOS TS TOS TS kW. mm. m.
100 100UZ43.7 TOS100UZ43.7 TS100UZ43.7 100UZA43.7 TOS100UZA43.7 TS100UZA43.7 100UZW43.7 TOS100UZW43.7 TS100UZW43.7 3.7 Three D.O.L 100 6
100 100UZ45.5 TOS100UZ45.5 TS100UZ45.5 5.5 Three D.O.L 100 8
100 100UZ47.5 TOS100UZ47.5 TS100UZ47.5 7.5 Three D.O.L 100 8
100 100UZ100UZ TOS100UZ100UZ TS100UZ100UZ 11 Three Star-Delta 100 8

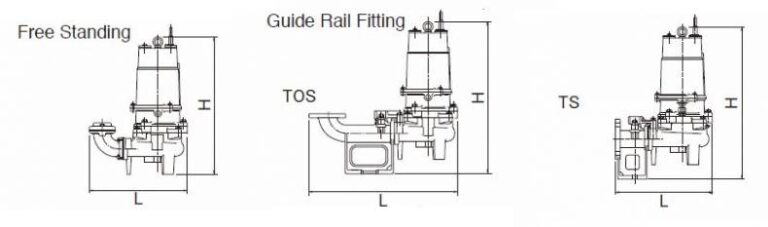

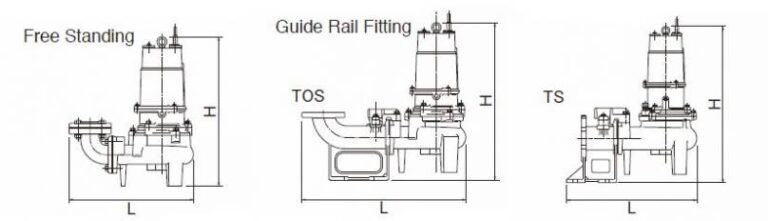

TSURUMI UZ Series Submersible Pump Dimensions

TSURUMI UZ Series 50UZ41.5,80UZ41.5,80UZ42.2,80UZ43.7,80UZ45.5,80UZ47.5,80UZ411,100UZ43.7,100UZ45.5,100UZ47.5,100UZ411

Dimensions LxH (mm.) Dry Weight (kg.)
Standard Model Auto&Auto -Alternation Model Standard Model Auto&Auto -Alternation Model
Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting
TOS TS TOS TS
405×566 621×626 398×626 442×683 658×743 435×743 52 50 58 56
531×637 705×670 552×670 565×754 738×787 585×787 66 56 73 63
531×637 705×670 552×670 565×754 738×787 585×787 66 57 73 64
557×688 731×721 578×721 565×861 738×894 585×894 72 63 79 70
595×899 768×927 615×927 129 125
595×920 768×948 615×948 147 142
602×981 776×1007 623×1007 178 173
Dimensions LxH (mm.) Dry Weight (kg.)
Standard Model Auto&Auto -Alternation Model Standard Model Auto&Auto -Alternation Model
Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting Free standing Guide Rail Fitting
TOS TS TOS TS
627×737 846×777 651×777 632×910 851×950 656×950 79 70 86 77
652×939 871×974 676×974 145 134
652×960 871×995 676×995 159 148
660×1021 879×1054 684×1054 191 180
