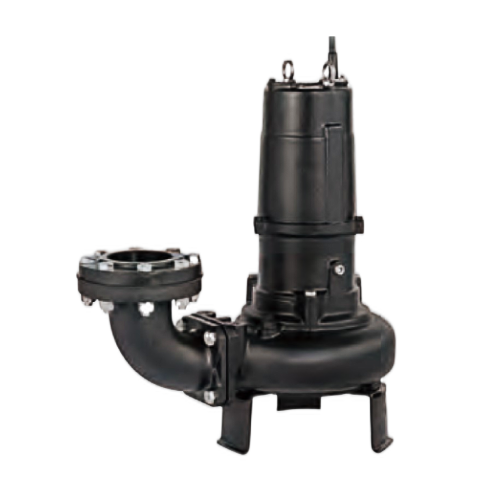

Submersible Pump TSURUMI 50 B Series

Tsurumi pump 50 B series is the basic of submersible sawage pumps using for all the society fundamentals. Durable and High Quality Products can be used for various. It is available as an extended line-up from 50 to 800mm discharge bores.

Facebook
Twitter
Email
Print

Submersible Pump TSURUMI 50 B Series

TSURUMI 50B2.4S , TSURUMI 50B2.4 , TSURUMI 50B2.75S , TSURUMI 50B2.75 ,TSURUMI 50B2.75H

TSURUMI : Submersible Pumps

Sewage & Wastewater

Led by aruguably the best cutter pump on the market today, our powerful and versatile sewage pumps confirm Tsurumi’s commitment to this growing market segment. Through the use of an adapter, our pumps are compatible with guide rail systems making pump replacement quick and easy while saving you time and money on entire rail systems.

Durable and compact. From our powerful sand and trash handling pumps to our efficient dewatering and residue/utility pumps, Tsurumi can meet your applications.

Let us assist you in choosing the correct model that will handle your needs and save you time and money.

Our 50 B Series non-clog pumps are used primarily in municipal water supply stations and sewage treatment plants for pumping water, sewage, and digested sludge. In industry, these pumps are efficient for controlling cooling water, process and wastewater, and abrasive materials.

tsurumi-b-series-300x222



TSURUMI 50 B Series 2.4S , TSURUMI 50B2.4 , TSURUMI 50B2.75S , TSURUMI 50B2.75 ,TSURUMI 50B2.75H

The 50 B-series is a submersible channel impeller designed for handling raw sewage, wastewater and heavy-duty industrial applications, where the pump is subject to complete submersion and requires maximum reliability. The TSURUMI B-series has a proven track record for offering life in both continuous and intermittent sump applications. It is available as an extended line-up from 50 to 800mm discharge bores.

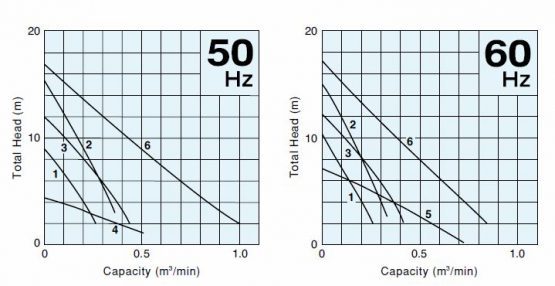

TSURUMI 50B Series Submersible pump Perforamance Curve

TSURUMI 50B2.4S,TSURUMI 50B2.4,TSURUMI 50B2.75S,TSURUMI 50B2.75H,TSURUMI 50B2.75

performance-tsurumi-B-50-80



TSURUMI 50B Series Submersible Pump Specifications

TSURUMI 50B2.4S,TSURUMI 50B2.4,TSURUMI 50B2.75S,TSURUMI 50B2.75H,TSURUMI 50B2.75

Model Standard Model Automatic Model Auto-alternation Model Motor output Phase Starting Method Solids Passage Cable
Free Standing Guide Rail Fitting  Free Standing Guide Rail Fitting  Free Standing Guide Rail Fitting  kW. mm. m.
TSURUMI 50B 50B24S TOS50B24S 0.4 Single Capacitor Start 35×22 5
50B2.4 TOS50B2.4 0.4 Three D.O.L. 35×22 5
50B2.75S TOS50B2.75S 50BA2.75S TOS50BA2.75S 0.75 Single Capacitor Start 21×25 5
50B2.75H TOS50B2.75H 50BA2.75H TOS50BA2.75H 50BW2.75H TOS50BW2.75H 0.75 Three D.O.L. 21×25 5
50B2.75 TOS50B2.75 50BA2.75 TOS50BA2.75 50BW2.75 TOS50BW2.75 0.75 Three D.O.L. 45×20 6

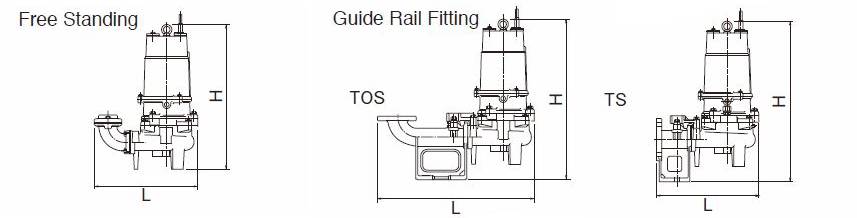

TSURUMI 50B Series Submersible Pump Dimensions

TSURUMI 50B2.4S,TSURUMI 50B2.4,TSURUMI 50B2.75S,TSURUMI 50B2.75H,TSURUMI 50B2.75

dimension-tsurumi-uz-50-80



Model Dimensions L x H mm Dry weight (kg.)
Standard Model Auto&
Auto-Alternation Model
Standard Model Auto&
Auto-Alternation Model
Free Standing Guide Rail Fitting  Free Standing Guide Rail Fitting  Free Standing Guide Rail Fitting  Free Standing Guide Rail Fitting
TSURUMI 50B24S 340×453 556×511 25 24
TSURUMI 50B2.4 340×420 556×478 23 22
TSURUMI 50B2.75S 405×523 621×566 405×580 621×623 32 30 34 32
TSURUMI 50B2.75H 405×415 621×458 433×496 623×539 24 23 25 24
TSURUMI 50B2.75 405×439 621×479 433×520 623×560 25 24 26 25
