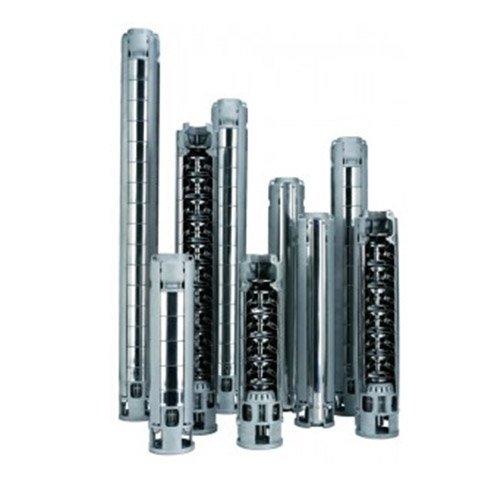

Submersible pumps for 6” wells LOWARA Z6, ZN6

The Z6-ZN6 Series is designed for use in 6” wells. The head and motor support of this lightweight and sturdy pump is cast in stainless steel as are the shaft sleeves ensuring long lasting reliability and efficiency.

The pump has a high sand handling capability which make the Z6-ZN6 series suitable for use in aggressive environments such as water supply from deep wells or irrigation over large areas such as golf courses.

Z6: AISI 304
ZN6: AISI 316

All Z6-ZN6 pumps can be coupled to NEMA standard motors.


  • Delivery: up to 78 m³/h
  • Head: up to 700 m
  • Power supply: three-phase 50 Hz
  • Power: from 0.55 kW up to 55 kW
  • Maximum operating pressure: 70 bar
  • Temperature of pumped liquid: to 60 °C
  • Maximum immersion depth: 350 m
