แอร์คอมเพรสเซอร์ MEDO AC 0102 Series

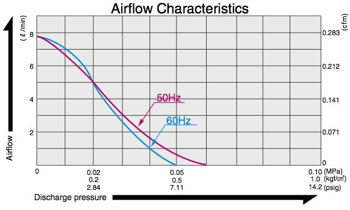

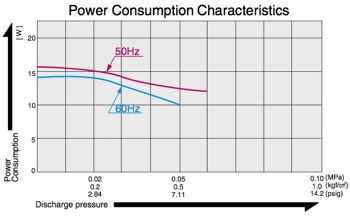

ac_0102_airflow_-1                 ac_0102_power_-2



Specifications MEDO AC 0102 Series

Air Compressor MEDO AC 0102
Rated Pressure: 0.2 bar
Rated Airflow: 5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.4 bar
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: 6 mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

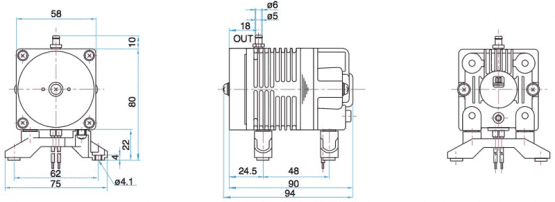

Dimensions MEDO AC 0102 Series

ac_0102_dimensions_
