แอร์คอมเพรสเซอร์ MEDO AC 0410A Series Interm Pressure

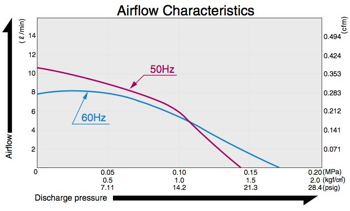

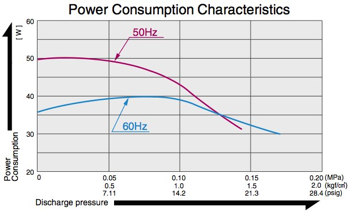

ac_0410_a_airflow_1            ac_0410_a_power_2



Specifications MEDO AC 0410A Series

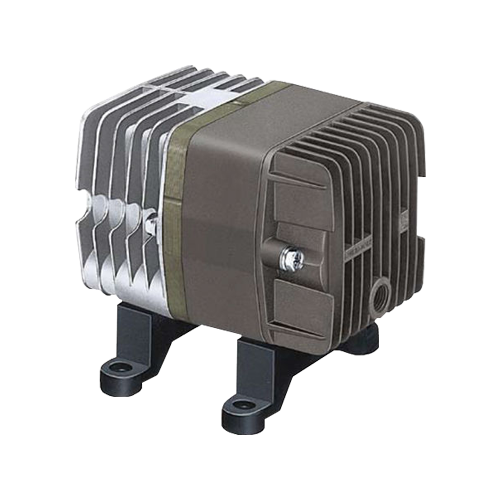

Air Compressor MEDO AC 0410A Series
Rated Pressure: 1.0 bar
Rated Airflow: 5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.3 bar
Power Consumption: 43 W
39 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 98 mm
Gross Weight: 2.1 kg
Leadwire Length: 220 mm or 200 mm

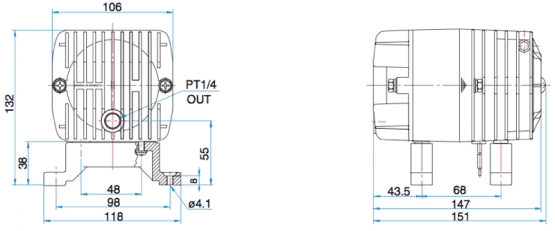

Dimensions MEDO AC 0410A Series

ac_0410_a_dimensions_
