เครื่องเป่าอากาศแบบสุญญากาศ ANLET BWH-SERIES

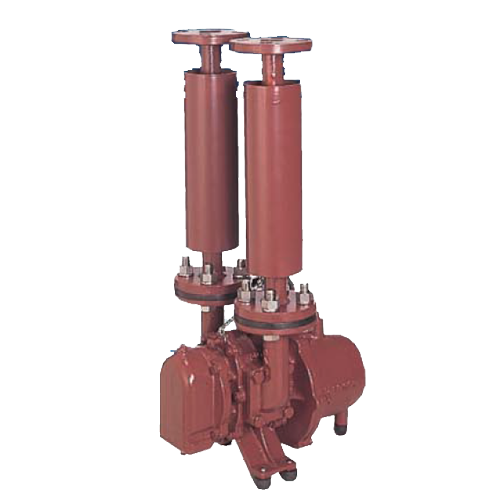

ANLET THREE LOBES BLOWER BWH-SERIES The three-lobes blower with helical casing offers a vertually no noise, no vibration operation.There is no oil mixing, so the air obtained is clean, with no spraying of oil mist to soil the environment.

Share on facebook
Facebook
Share on twitter
Twitter
Share on email
Email
Share on print
Print

เครื่องเป่าอากาศแบบสุญญากาศ ANLET BWH-SERIES

SPECIFICATIONS DATA

MODEL Bore kW 1020mmAq 2040mmAq 3060mmAq 4080mmAq 5100mmAq 6120mmAq
m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW
BWH2504 1 0.4 0.31 0.23 0.28 0.27 0.25 0.31 0.22 0.35 0.19 0.4
BWH2504A 1 0.4 0.39 0.28 0.35 0.33 0.31 0.38
BWH3208 1 1/4 0.75 0.56 0.38 0.49 0.44 0.42 0.5 0.36 0.56 0.3 0.63
BWH3208A 1 1/4 0.75 0.69 0.39 0.6 0.45 0.53 0.53 0.46 0.62 0.4 0.73
BWH4015 1 1/2 1.5 0.99 0.6 0.88 0.78 0.77 0.96 0.67 1.16 0.58 1.38
BWH4015D 1 1/2 1.5 1.15 0.7 1.05 0.9 0.95 1.1 0.87 1.3
BWH4022 1 1/2 2.2 1.18 0.72 1.07 0.92 0.98 1.12 0.91 1.32 0.85 1.52 0.8 1.75
BWH5015 2 1.5 1.15 0.7 1.05 0.9 0.95 1.1 0.87 1.3
BWH5022 2 2.2 1.48 81 1.33 1.06 1.18 1.31 1.05 1.61 0.93 1.93
BWH5022D 2 2.2 2.1 1 1.98 1.4 1.87 1.8 1.78 2.2
BWH5037 2 3.7 2.2 1.5 2.06 1.9 1.92 2.2 1.81 2.6 1.72 3.1 1.65 3.6
BWH6522 2 1/2 2.2 2.1 1 1.98 1.4 1.87 1.8 1.78 2.2
BWH6537 2 1/2 3.7 3.06 1.6 2.88 1.9 2.7 2.4 2.54 2.9 2.4 3.6
BWH6537A 2 1/2 3.7 3.9 1.8 3.7 2.3 3.5 2.9 3.31 3.7
BWH6555 2 1/2 5.5 3.06 1.6 2.88 1.9 2.7 2.4 2.54 2.9 2.4 3.6 2.31 4.3
BWH8055 3 5.5 4.56 2 4.28 2.84 3.6 3.75 4.3 3.5 5.5
BWH8075 3 7.5 5.3 2.2 5.05 3.1 4.8 4 4.5 5.1 4.31 6.2 4.11 7.3
BWH10075 4 7.5 6.4 2.8 6.2 3.9 6 5 5.8 6.2 5.6 7.5
BWH10011 4 11 6.4 2.8 6.2 3.9 6 5 58 6.2 5.6 7.5 5.4 9
BWH12575 5 7.5 6.4 2.8 6.2 3.9 6 5 5.8 6.2 5.6 7.5
BWH12511 5 11 9.6 3.7 9.3 5.5 9 7.3 8.8 9.2 8.6 11
BWH12515 5 15 9.6 3.7 9.3 5.5 9 7.3 8.8 9.2 8.6 11 8.4 13.1
