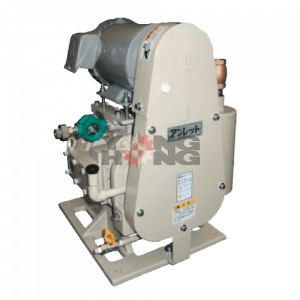

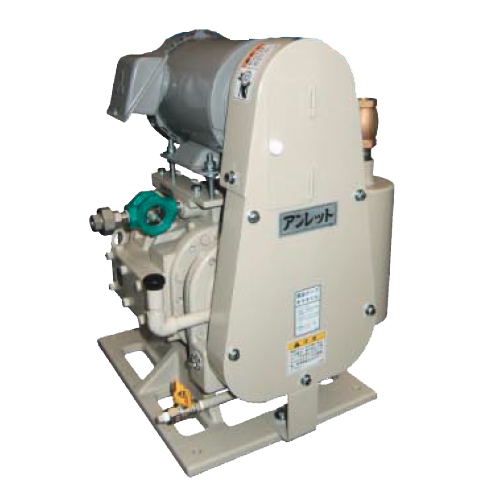

เครื่องเป่าอากาศแบบสุญญากาศ ANLET CT4-LE Series

Anlet Three-Lobes Blower CT4-LE-SERIES Initally nearly all blower were of the two lobed type, and althoung th design of the three-lobed type
was understood o other the adventages lower noise and vibration as greater efficiecy, construction wasdifficult Anlet alone has been able to produce high-performance yet low-cost blower using a patented three-lobe rotor maching tool.

Share on facebook
Facebook
Share on twitter
Twitter
Share on email
Email
Share on print
Print

เครื่องเป่าอากาศแบบสุญญากาศ ANLET CT4-LE Series

MODEL CT4-50LE CT4-65LE CT4-150LE CT4-200LE CT4-300LE CT4-450LE CT4-700L
Suction nozzle diameter A 25 25 50 50 80 80 80
Discharge nozzle diameter A 25 25 40 40 50 50 65
Designed exhaust speed m3/min 0.77 1 2.38 3.22 5.23 7.21 11.5
Motor Out kW 1.5 2.2 3.7 5.5 7.5 11 15
RPM min-1 2800 3600 1700 2300 1450 2000 2000
Cooling water l/min 2 2 7 7 15 15 15
Noise dB(A) 8kPa(60Torr) at1m 73 74 77 79 83 85 85
