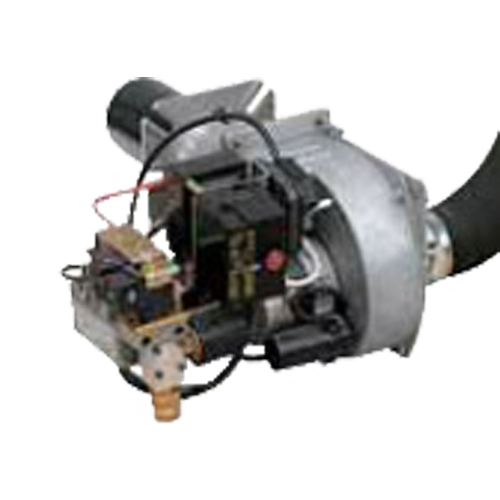

เครื่องพ่นไฟ F.B.R. C Series GAS 1/C,GAS 2/C
F.B.R. C Series Specifications GAS 1/C,GAS 2/C
| 1 Stage for kitchens | 1 Stage from 11 up to 70 kW | ||||
| kcal/h | kW | Phase | |||
| min | max | min | max | ||
| GAS 1/C | 10 | 40 | 11,6 | 47 | 1F |
| GAS 2/C | 15 | 60 | 17,5 | 70 | |
| X0 THLS Series for units | 1 Stage from 11 up to 70 kW | ||||
| kg/h | kW | Phase | |||
| min | max | min | max | ||
| GAS X0 THLS | 10 | 29.5 | 11,6 | 34,2 | 1F |
F.B.R. C Series Dimensions GAS 1/C,GAS 2/C
| Model | A | B | C | ØD | E | F | G | H | I | L | M | ØN | O | P | TC | TL | R2 | Ø |
| GAS 1/C | 321 | 166 | 184 | 90 | 43 | 310 | 210 | 75 | 130 | 160 | 130 | 100 | 30 | m8 | 85 | 145 | 128 | 1/2″ |
| GAS 2/C | 321 | 166 | 184 | 90 | 43 | 310 | 210 | 75 | 130 | 160 | 130 | 100 | 30 | m8 | 85 | 145 | 128 | 1/2″ |
| Model | A | B | C | ØD | E | F | H | I | TC | TL | M | N | O | TC |
| GAS X0 CE THLS – D1/2″ | 144 | 169 | 176 | 90 | 80 | 84 | 125 | 193 | 92 | 152 | 230 | 161 | 176 | 1/2″ |
