รอกโซ่ไฟฟ้า KITO ER2 DUAL SPEED INVERTER Five meters of power supply cable as standard accompanies. Optional length of lift, push button cord and power supply cable besides standard is available on your request. Extending the load chain is prohibited with additional links. Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume.
| Capicity (T) |
Product Code |

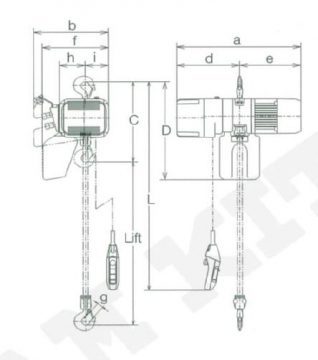

Headroom C |
D | a (MFC) |
b | d (MFC) |
| 125kg | ER2-001IH | 350 | 430 | 535(564) | 345 | 276(305) |
| 250kg | ER2-003IS | |||||
| ER2-003IH | 370 | 490 | 568(593) | 348 | 300(325) | |
| 500 kg | ER2-005IL | 571(598) | ||||
| ER2-005IS | 568(593) | |||||
| 1 | ER2-010IL | 430 | 550 | 614(632) | 376 | 316(332) |
| ER2-010IS | 623(639) | |||||
| 1.5 | ER2-015IS | 510 | 630 | 710(737) | 427 | 372(397) |
| 2 | ER2-020IL | 575 | ||||
| ER2-020IS | 590 | 767(782) | 411(426) | |||
| 2.5 | ER2-025IS | 625 | 840 | 800(826) | 445 | 401(427) |
| 3 | ER2-030IS | 785 | 920 | 767(782) | 427 | 411(426) |
| 5 | ER2-050IS | 850 | 800(826) | 445 | 401(407) |
| Capicity (T) |
Product Code |
e (MFC) |
f | g | h | i |
| 125kg | ER2-001IH | 259 | 284 | 27 | 99 | 117 |
| 250kg | ER2-003IS | |||||
| ER2-003IH | 268 | 283 | 27 | 113 | 106 | |
| 500 kg | ER2-005IL | 271(273) | ||||
| ER2-005IS | 268 | |||||
| 1 | ER2-010IL | 298(300) | 335 | 31 | 129 | 118 |
| ER2-010IS | 307 | |||||
| 1.5 | ER2-015IS | 338(340) | 384.5 | 34 | 160.5 | 137.5 |
| 2 | ER2-020IL | 39 | ||||
| ER2-020IS | 356 | |||||
| 2.5 | ER2-025IS | 399 | 437.5 | 173.5 | 142.5 | |
| 3 | ER2-030IS | 356 | 397 | 44 | 216 | 82 |
| 5 | ER2-050IS | 399 | 439 | 47 | 231.5 | 84.5 |
| Capicity (T) |
Product Code |
Hoist Body |
Standard Lift (M) |
Push Button Cord L (M) |
Lifting Motor | Lifting Speed (M/MIN) |
|||
| Outout (kW) |
Rating (%ED) |
50/60HZ | |||||||
| High | Low | ||||||||
| 125kg | ER2-001IH | B | 3 | 2.5 | 0.56 | 40/20 | Preset | 16.6 | 2.8 |
| Adjustable | 1.4 | ||||||||
| 250 kg | ER2-003IS | Preset | 10.8 | 1.8 | |||||
| Adjustable | 0.9 | ||||||||
| ER2-003IH | C | 0.9 | Preset | 15.7 | 2.6 | ||||
| Adjustable | 1.3 | ||||||||
| 500 kg | ER2-005IL | 0.56 | Preset | 4.5 | 0.8 | ||||
| Adjustable | 0.4 | ||||||||
| ER2-005IS | 0.9 | Preset | 8.5 | 1.4 | |||||
| Adjustable | 0.7 | ||||||||
| 1 | ER2-010IL | D | Preset | 4.2 | 0.7 | ||||
| Adjustable | 0.3 | ||||||||
| ER2-010IS | 1.8 | Preset | 8.2 | 1.4 | |||||
| Adjustable | 0.7 | ||||||||
| 1.5 | ER2-015IS | E | Preset | 5.3 | 0.9 | ||||
| Adjustable | 0.4 | ||||||||
| 2 | ER2-020IL | Preset | 4.3 | 0.7 | |||||
| Adjustable | 0.4 | ||||||||
| ER2-020IS | 3.5 | Preset | 8.2 | 1.4 | |||||
| Adjustable | 0.7 | ||||||||
| 2.5 | ER2-025IS | F | Preset | 6.6 | 1.1 | ||||
| Adjustable | 0.6 | ||||||||
| 3 | ER2-030IS | E | 2.8 | Preset | 5.2 | 0.9 | |||
| Adjustable | 0.4 | ||||||||
| 5 | ER2-050IS | F | Preset | 3.3 | 0.6 | ||||
| Adjustable | 0.3 | ||||||||
| Capicity (T) |
Product Code |
Loading Chain | Classification ISO/FEM/ASME |
Test Load (t) |
Net Weight (kg) |
Additional Weight per 1 m Lift (kg) |
| Diamater x Chains (MM) Falls |
||||||
| 125kg | ER2-001IH | 4.3 x 1 | M6/3m/H4 | 156 kg | 27 | 0.42 |
| 250 kg | ER2-003IS | 313 kg | ||||
| ER2-003IH | 6.1 x 1 | 36 | 0.81 | |||
| 500 kg | ER2-005IL | 625 kg | 32 | |||
| ER2-005IS | 36 | |||||
| 1 | ER2-010IL | 7.7 x 1 | M5/2m/H4 | 1.25 | 45 | 1.33 |
| ER2-010IS | 52 | |||||
| 1.5 | ER2-015IS | 10.2 x 1 | 1.88 | 72 | 2.3 | |
| 2 | ER2-020IL | M4/1AM/H4 | 2.5 | 73 | ||
| ER2-020IS | 89 | |||||
| 2.5 | ER2-025IS | 11.2 x 1 | 3.13 | 100 | 2.8 | |
| 3 | ER2-030IS | 10.2 x 2 | 3.75 | 105 | 4.7 | |
| 5 | ER2-050IS | 11.2 x 2 | 6.25 | 128 | 5.6 |
