รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t – 9t)

รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t – 9t) มีความแข็งแรงทนทานและใช้งานได้ยาวนาน

Facebook
Twitter
Email
Print

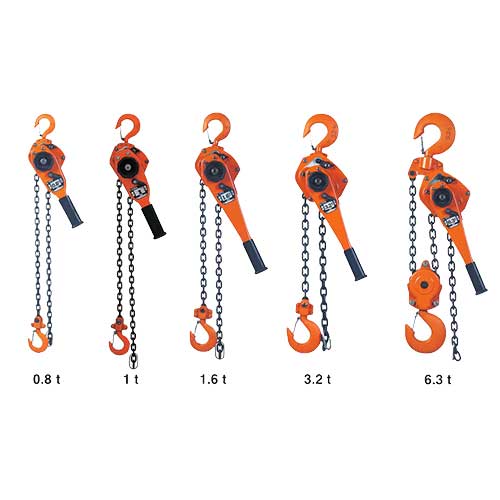

รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t – 9t)

Nice Lever offers following exceptional features

1.Automatic switching to free pulley mode.

Simply remove the load from the bottom hook and pull the chain to automatically switch to free pulley mode. The winch automatically switches back to normal mode when a load is placed on the bottom hook. Automatic switching greatly improves work efficiency.

2.Easy maintenance.

The free pulley mechanism has only a few parts, making disassembly and repair a quick and easy process.

3.Plated chain.

The winch chain is tough-pitch plated to prevent rusting and ensure continuous smooth operation. Lifting Lowering Fastening Pulling

4.Locked chain release mechanism.

If the chain locks due to an impacting load, simply move the lever by to release the chain.

5.Knobbed hook.

The winch hook is equipped with an anti-slip knob. Even if the hook is stretched slightly, the wire rope catches on the anti-slip knob to prevent if from slipping off the hook, ensuring safe operation.



Use it for:

Loading a truck, centering building material at a construction site, setting up or moving,  machinery and other heavy objects, laying down drain pipes and hume pipes, working in narrow spaces as in shipyards and mines.



SPECIFICATIONS DATA VITAL NICE LEVER NR2 (0.25t – 9t)

Model Number NR2-03 NR2-05 NR2-08 NR2-10 NR2-15 NR2-30 NR2-60 NR2-90
Capacity (t) 0.25 0.5 0.8 1 1.6 3.2 6.3 9
Standard Lift (m) 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Net Weight (Kg) 1.9 3.5 6 7.2 9.8 16.6 27 47.3
Min.Distance
between Hooks
(mm) 230 260 295 325 350 425 565 660
Pull Required to
Lift Full Load
(kg) 30 34 21 23 27 38 39 40
(N) 294 333 206 226 265 373 382 392
chain thickness (mm) 4 5 5.6 6.3 7.1 9 9 9

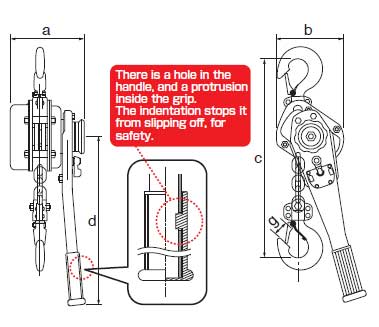

dimensions
a (mm) 85 108 146 146 161 195 195 195
b (mm) 65 82 119 126 146 180 243 318
c (mm) 230 260 295 325 350 425 565 660
d (mm) 151.5 267 256 256 368 368 368 368
g (mm) 24 27 27 30 34 43 47 67

0021

1234



VITAL NICE LEVER NR2,VITAL,NR2,VITAL NICE LEVER NR2 (0.25t-0.9t),pulley ,Easy maintenance,Plated chain.,Locked chain release mechanism.,Knobbed hook.,Automatic switching to free pulley mode.,Chain,Use it for Loading a truck,Use it for working in narrow spaces as in shipyards ,Automatic free pulley ,VITAL NICE LEVER
