Dies

Features

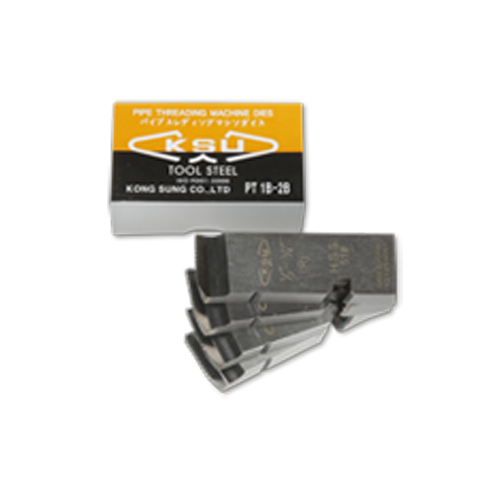

GOLD KSU DIES are Dies for steel, stainless pipes and are produced in the up-to-date ways of manufacturing different from those of the existing DIES, and so are long-lived and can work upon the threads more precisely.

  • Screws are made affter the complete step cut of the outside after heat treatment, and the whole of the screws are manufactured through the step cut. Therefore, not only the angles of the screws but also the bond angles of male screws and female screws meet (JIS) exactly.
  • As the front step cut is double angles are different from each other, the cutting is easy and gentle.

K-TYPE(SK & H·S·S)-1F

SK DIES

H·S·S DIES

SK DIES,
H·S·S DIES
SIZE MODEL
½B-¾B K-N40A, K-N50A
K-N80A, K-N80B
K-N80C, K-N100A
1B-2B K-N40A, K-N50A
K-N80A, K-N80B
K-N80C, K-N100A
2B-3B K-N80A
K-N80B
K-N80C

RS-TYPE(SK & H·S·S)-1F

SK DIES

H·S·S DIES

SK DIE,
SH·S·S DIES
SIZE MODEL
½B-¾B R-N40A, R-N50A
R-N80C, R-100A
1B-2B R-N40A, R-N50A
R-N80C
R-100A
2B-3B R-N80C

Steel pipe and stainless steel pipe Dies

SK & H·S·S(SKH51) DIES

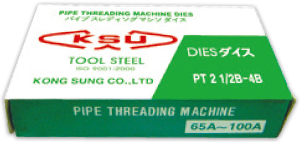

Size : 21 / 2B x 4B

A NEW CONCEPT OF DOUBLE BLADED-DIES, 2F-DIES

Features

  • Double blades enable immadiate replaecement of the worn or broken blade with the other and reduce working working hours.
  • the entire die made of an alloy steel (SK) or high strength steel (HSS) is solid and has a longer working life time.
    Entriely suitable for screw thread works of stainless steel pipes, special material steel pipes, steel pipes, etc.
    KongSung (K-type) and Rex (R-type) are available depending on the pipe screw-milling machine.

A new concept of normal double-bladed Dies (SK-2F)

– For steel

Only KSU Type SK-2F SIZE MODEL
½B-¾B K-N40A, K-N50A
K-N80A, K-N80B
1B-2B K-N80C, K-N100A
2B-3B K-N80A, K-N80B
K-N80C
Only R-Type SK-2F SIZE MODEL
½B-¾B R-N40A, R-N50A
R-N80C, R-100A
1B-2B R-N40A, R-N50A
R-N80C, R-100A
2B-3B R-N80C

A new concept of high speed steel double-bladed Dies (H.S.S -2F)

– For common steel and stainless steel.

Only KSU Type H.S.S-2F SIZE MODEL
½B-¾B K-N40A, K-N50A
K-N80A, K-N80B
1B-2B K-N80C, K-N100A
2B-3B K-N80A, K-N80B
K-N80C
Only KSU Type H.S.S-2F SIZE MODEL
½B-¾B K-N40A, K-N50A
K-N80A, K-N80B
1B-2B K-N80C, K-N100A
2B-3B K-N80A, K-N80B
K-N80C
