ปั๊มจุ่ม FLYGT N 3085 Series

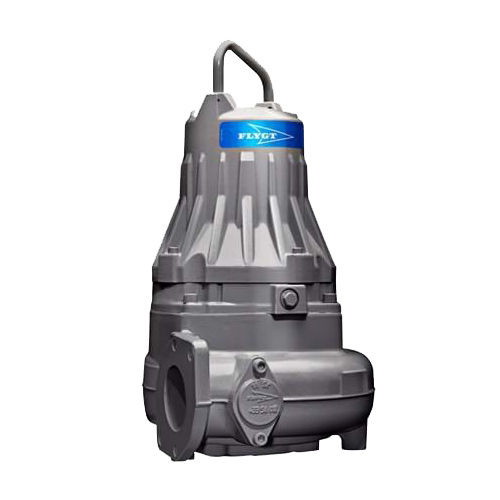

ปั๊มจุ่ม (Submersible pump) FLYGT N 3085

WASTEWATER N-TECHNOLOGY PUMP WITH ADAPTIVE N-IMPELLER

Flygt N-pumps take on the toughest applications and get the job done. Every component is designed and manufactured to deliver sustained high efficiency. Thanks to patented N-technology with its innovative self-cleaning impeller, Flygt N-pumps deliver the highest total efficiency. They lower your energy bill and reduce unplanned maintenance costs. That adds up to total peace of mind – and big savings over the long term.

Most solid objects entering the pump will pass through the impeller between the impeller vanes. If an object gets caught on the leading edge of one of the vanes, it will slide along the backswept shape towards the perimeter of the inlet.

Due to the mechanical self-cleaning design, a sludge concentration up to 8% can easily be pumped.



FLEXIBLE AND MODULAR DESIGN

This self-cleaning pump features innovative functions that make it the best choice for a broad range of applications. The modular hydraulic design enables you to tailor the hydraulics to meet the requirements of virtually any application.

  • Replaceable wear ring in two materials, gray iron or Hard IronTM, for different operation conditions
  • Hardened gray iron impeller for typical wastewater applications
  • Hard Iron™ impeller for abrasive and corrosive applications
  • Stainless steel impeller for special applications that require duplex stainless steel
  • Short shaft overhang reduces shaft deflection and increases seal and bearing life
  • Motor designed for submersible use. Heat is concentrated to the stator core for improved cooling properties
  • The double mechanical seal system consists of two sets of mechanical shaft seals that work independently to provide double security. Available in Tungsten carbide (WCCR) or Silicone carbide (SiC) depending on pumped media.
  • Griplock™ seal system secures locking to the shaft, no rubber friction, no grub screws and no shaft damage
  • Motor cable SUBCAB ® specially developed for submersible use.



SPECIFICATIONS DATA

MODEL N 3085 MT1 PHASE ADAPTIVE 4POLE 50Hz US N 3085 MT 3 PHASE  4POLE 50Hz US N 3085 MT 3 PHASE ADAPTIVE 4POLE 50Hz US
Frequency 50 Hz 50Hz 50Hz
Number of poles 4 4 4
Phase 1 3 3
Discharge outlet diameter 3 1/8 inch 3 1/8 inch 3 1/8 inch
Rated power 2 hp 1.7 hp -2.7 hp 1.7 hp -2.7 hp
Rated currents @400V 9.2 A 3.3 A- 5.2 A 3.6 A-4.8 A
Impeller Material Gray cast iron Gray cast iron
Impeller Material option1 Stainless steel
Motor efficiency class Standard Standarsd Premium efficiency (IE3) Standarsd Premium efficiency (IE3)
