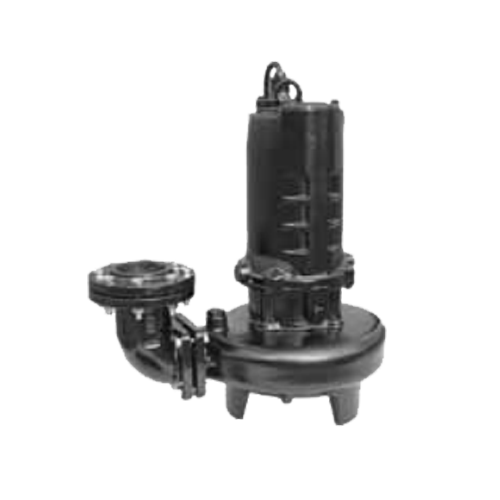

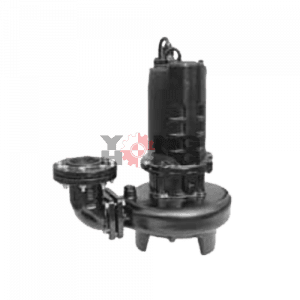

ปั๊มจุ่ม SHINMAYWA CN Series

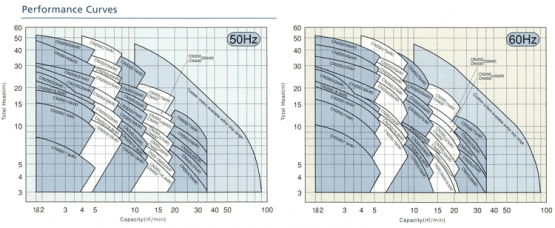

PERFORMANCE DATA CN Larg Bore Forced Cooling

SPECIFICATIONS DATA CN Larg Bore Forced Cooling

MODEL Bore output capacity -total Head capacity -total Head Pole Weight (kg) Motor Insulation class Actuating System Power Cable Mechanical Seal Material
automatic connection Flange Connection mm kW m/min (50Hz) m/min (60Hz) P automatic Flange class Length upper lower
CN2001-P CN2001-F 200 7.5 (263DY) 110×70 (A215Y) 85×70 6 270 315 E Direct 2PNCT 8 SiC/SiC SiC/SiC
11 (A211A) 95×95 (A212) 95×65 4 star-Delta
15 (A215) 85×70 (A216) 85×60
18.5 (221DY) 75×70 (222DY) 100×75 340 385
22 (221D) 75×70 (222D) 100×75
30 (251AY) 75×100 (252AY) 75×75 650 730
37 (251A) 75×100 (252A) 75×75
45 (205AY) 40×70 (244A) 45×90 700 780
CN2501-P CN2501-F 250 15 (A259) 115×90 (A250) 100×80 4 275 325 E star-Delta 2PNCT 8 SiC/SiC SiC/SiC
18.5 (263DY) 115×85 (264DY) 100×90 345 395
22 (263D) 115×85 (264D) 100×90
30 (251AY) 70×95 (252AY) 75×70 650 735
37 (251A) 70×95 (252A) 75×70
45 (251B) 65×110 (244A) 70×95 700 785
CN3001-P CN3001-F 300 11 (A315Y) 145×115 (A316Y) 130×100 6 385 450 E star-Delta 2PNCT 8 SiC/SiC SiC/SiC
15 (A315) 145×115 (A316) 130×100
18.5 (321AY) 175×95 (332AY) 140×105 790 895
22 (321A) 175×95 (332A) 140×105
(331D) 130×95 (322D) 130×75 4 420 475
30 (301Y) 180×130 (302AY) 135×95 6 810 915
37 (301) 180×130 (302A) 135×95
CN4001-P CN4001-F 400 22 (411) 185×150 (412) 165×135 6 850 1090 E star-Delta 2PNCT 8 SiC/SiC SiC/SiC
30 (351Y) 185×135 (352Y) 185×105
37 (351) 185×135 (352) 185×105

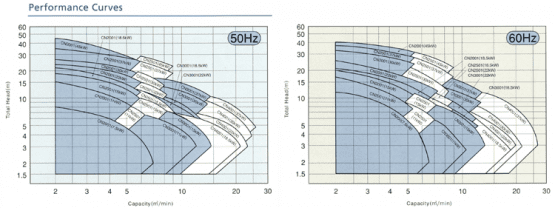

PERFORMANCE DATA CN Large Bore Natural Cooling

SPECIFICATIONS DATA CN Large Bore Natural Cooling

MODEL Bore output capacity -total Head capacity -total Head Pole Weight (pump proper) Motor Insulation class Actuating System Power Cable Mechanical Seal Material
mm kW m/min (50Hz) m/min (60Hz) P kg class Length upper lower
CN200-P 200 7.5 (263DY) 110×70 (215Y) 85×70 6 400 E star-Delta 2PNCT 8 carbon/hard metal carbon/SiC
11 (211A) 95×65 (212) 95×65 4 390 hard metal/hard metal
15 (215) 85×70 (216) 75×60 410 carbon/Sic
18.5 (620Y) 125×124 (630Y) 125×120 6 540 F
(610AY) 125×123
(470Y) Ø75 (480Y) Ø75 4
22 (640) 115×113 (640) 115×115 6
(630) 125×120
(620) 125×124 (630) 125×120
(610A) 125×123
(470) Ø75 (480)Ø75 4
30 (251AY) 75×100 (252AY) 75×75 900
37 (251A) 75×100 (252A)75×75
45 (205AY) 40×70 (206Ay) 45×90 930
55 (205A) 40×70 (206A) 45×90
CN250-P 250 15 (259) 115×90 (250) 100×80 4 415 F star-Delta 2PNCT 8 carbon/hard metal hard metal/hard metal
18.5 (253Y) 80×110 (254Y) 80×90 6 615 carbon/Sic
22 (253) 80×110 (254) 80×90
30 (251AY) 70×95 (252AY) 75×70 4 900
37 (251A) 70×95 (252A) 75×70
45 (255Y) 65×110 (256Y) 70×95 940
55 (255) 65×110 (256) 70×95
75 (257B) 60×150 (258A) 60×120 1490
CN300-P 300 18.5 (321AY) 175×95 (322AY) 140×105 6 640 F star-Delta 2PNCT 8 carbon/Sic Hard metal/hardmetal
22 (321A) 175×95 (322A) 140×105
30 (301Y) 180×130 (302AY) 135×95 975
37 (301) 180×130 (302A) 135×95
45 (303) 135×110 (304) 140×145 1040
55 (305) 110×140 (306)105×125 1280
75 (307) 80×85 (308) 85×80 4 1500
CN350-P 350 18.5 (411Y) 185×150 (412Y) 165×135 8 1090 F star-Delta 2PNCT 8 carbon/Sic Hard metal/hardmetal
22 (411) 185×150 (412) 165×135
30 (351Y) 185×135 (352Y) 185×105 6 1150
37 (351) 185×135 (352) 185×105
45 (353) 185×140 (354) 180×125 1200
55 (405) 150×190 (406) 130×170 1400
75 (401) 135×165 (402) 120×150 1930
CN400-P 400 18.5 (411Y) 185×150 (412Y) 165×135 8 1090 F star-Delta 2PNCT 8 Carbon/SiC hard metal/hard metal
22 (411) 185×150 (412) 165×135
30 (351Y) 185×135 (352Y) 185×105 6 1150
37 (351) 185×135 (352) 185×105
45 (353) 180×140 (354) 180×125 1200
55 (405) 150×190 (406) 130×170 1400
75 (401) 135×165 (402) 120×150 1930
CN500-P 500 30 (511Y) 175×250 (511Y) 175×250 (50) : 10 2160 F star-Delta 2PNCT 8 carbon/SiC Hard metal/hard metal
37 (511) 175×250 (511) 175×250 (60) : 12
45 (505Y) 220×180 (506Y) 200×160 8 2000
55 (505) 220×180 (506) 200×160
75 (628Y) 210×160 (614Y) 200×150 8 2400
