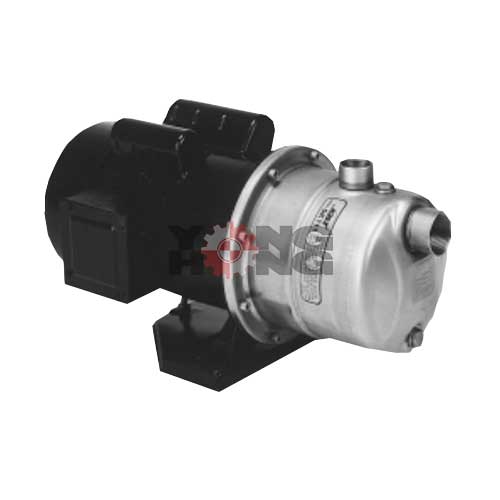

ปั๊มน้ำ CAT 5K Series


  • 304SSL liquid-end construction offers corrosion resistance and increases operating life over typical cast iron models
  • Unique bulge formed components eliminates harsh radius and welds and provides greater efficiency and durability
  • Back pullout design permits easy repair of impeller and seal
  • High quality mechanical shaft seal and o-rings for a variety of standard or high temperature and chemical duty applications
  • Under casing foot mount and centerline discharge reduces misalignment and assures self-venting
  • Close coupled, motorized packages for compact and easy installation
  • Durable Noryl/Fiberglass Diffuser
MODEL 5K Series
Flow Range Up to 18.5 gpm
Pressure Range (up to 82 PSI) 190 ft.Head
RPM  3450 rpm
Inlet Fitting 1-1/4″ NPT(F)
Discharge Fitting 1″ NPT(F)
Shaft Seal Mech Type 21
Horsepower 1, 2 HP
Maximum Temperature 113°F
