ปั๊มหอยโข่ง EBARA SQ Series

ปั๊มหอยโข่ง EBARA SQ Series เป็นปั๊มน้ำประสิทธิภาพสูงจาก EBARA ออกแบบมาเพื่อการใช้งานในอุตสาหกรรมและครัวเรือน  ตัวปั๊มทำจากสแตนเลสสตีลทนทาน พร้อมระบบป้องกันการทำงานผิดปกติ เหมาะสำหรับการจ่ายน้ำและเพิ่มแรงดันน้ำในระบบต่างๆ

Facebook
Twitter
Email
Print

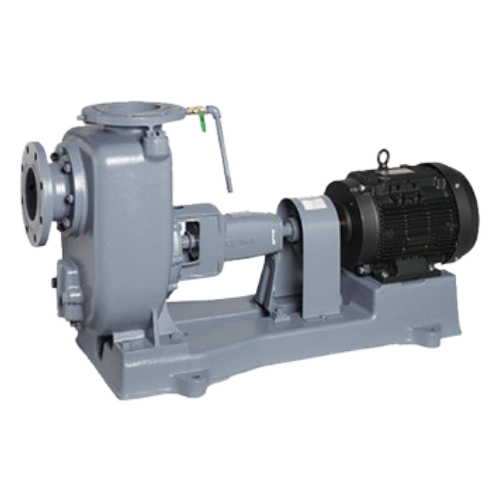

EBARA SQ Series

ปั๊มหอยโข่ง EBARA รุ่น SQ Series ปั๊ม Self-Priming ออกแบบมาเพื่อการใช้งานที่ต้องการการสูบน้ำอย่างรวดเร็ว และมีประสิทธิภาพ ด้วยการออกแบบที่เน้นความทนทานและการบำรุงรักษาที่ง่ายดาย ปั๊มรุ่นนี้จึงเหมาะสำหรับการใช้งานในหลากหลายอุตสาหกรรม



คุณสมบัติ

  • การทำงานแบบ Self-Priming: สามารถสูบน้ำได้อย่างรวดเร็วโดยไม่ต้องเติมน้ำในปั๊มก่อนการใช้งาน
  • โครงสร้างทนทาน: ผลิตจากวัสดุคุณภาพสูง เพื่อความทนทานต่อการสึกหรอและการกัดกร่อน
  • การบำรุงรักษาง่าย: การออกแบบที่คำนึงถึงการบำรุงรักษา ทำให้การตรวจสอบและซ่อมบำรุงทำได้อย่างสะดวกและรวดเร็ว



การใช้งาน:

  • ระบบประปา: การสูบน้ำในระบบประปาและการจ่ายน้ำ
  • การชลประทาน: การสูบน้ำสำหรับการชลประทานในภาคการเกษตร
  • อุตสาหกรรมทั่วไป: การสูบน้ำในกระบวนการผลิตและการใช้งานทั่วไปในโรงงาน



Specifications

Type Semi-open Impeller Enclosed Impeller
Liquid Turbid water, Muddy or sandy water Fresh water or equivalent
Temperature 0~40°C (32~104°F) 0~40°C (32~104°F)
Re. NPSH Below 5m (at 20°C) Below 5m (at 20°C)
Synchronous speed 1500min⁻¹/50Hz, 1800min⁻¹/60Hz 1500min⁻¹/50Hz, 1800min⁻¹/60Hz
Installation Indoors Indoors
Material Casing: Cast iron
Impeller: Cast iron
Shaft: Carbon steel (Optional: Bronze)
Flange: Standard for model SQ (Optional: 403 stainless steel)
Casing: Cast iron
Impeller: Cast iron
Shaft: 403 stainless steel (Optional: Bronze)
Flange: JIS 10kgf/cm² GR.F.
Construction Nozzle position: End suction, top discharge
Impeller type: Semi-open
Stuffing box: Mechanical seal
Bearing: Sealed ball bearing
Nozzle position: End suction, top discharge
Impeller type: Enclosed
Stuffing box: Mechanical seal
Bearing: Sealed ball bearing
Accessories [Bare shaft pump]
Priming funnel (1)
Companion flanges (with bolts) (2 set)
[With motor]
Common base (1), Coupling (1 set), Coupling guard (1)
Optional: Strainer, Anchor bolts, Automatic air vent valve, Pressure gauge, Compound gauge, Vacuum gauge, Gate valve, Check valve
[Bare shaft pump]
Priming funnel (1)
[With motor]
Common base (1), Coupling (1 set), Coupling guard (1)
Optional:  Strainer, Companion flange (with bolts), Anchor bolts, Automatic air vent valve, Pressure gauge, Compound gauge, Vacuum gauge, Gate valve, Check valve



Performace

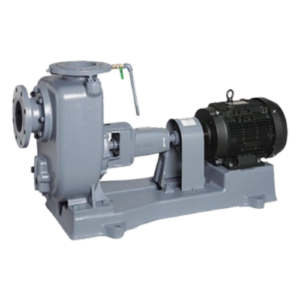

EBARA SQ Series

EBARA SQ Series
