ปั๊มจุ่ม HCP F Series

Submersible Pump HCP F Series

Submersible Pump HCP F Series

  • Drainage of sewage from the building basements, hotel industry wastes water from factories. ▪ Drainage of sewage from industrial process factories.
  • Emptying of septic tanks, cesspits and sewage pump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.
Category Tags , , , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Submersible Pump HCP F Series

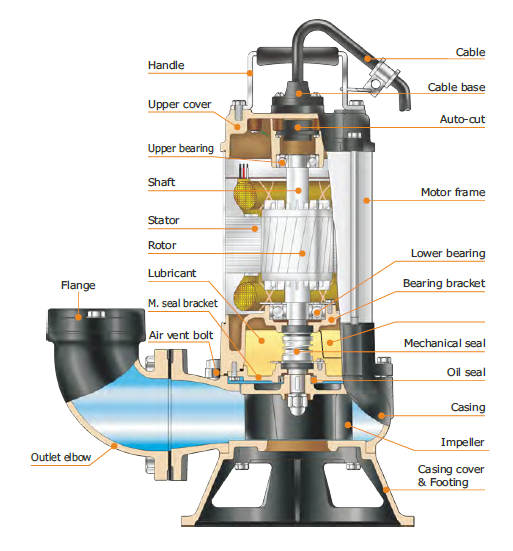

HCP F 2



  • A precision manufactured motor is achieved utilizing the highest standard of quality control. All rotors adopt heat treatment method for drive shaft assembling and stator winding impregnated with vamish and heat dried in industrial oven.
  • HCP’s professional assembly line, complimented with a synthesized production test ensures the highest level of final pump quality.
  • Standard accessories include : cable with an epoxy resin sealed water-resistant cable base, AC thermal motor protector, dual mechanical seals and lip seal design.
  • The F-05A is an extremely practical pump with low temperature oil filled motor and single seal design (CA/CE).



HCP F 3

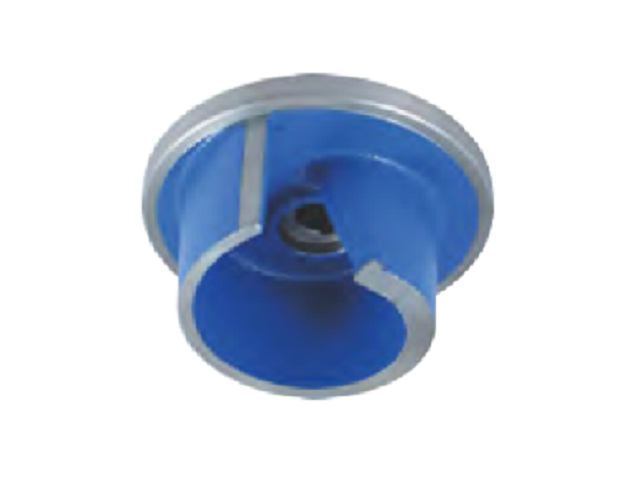

P Type Impeller
Semi-open(Single Vane Impeller): Excellent to use with waste materials to prevent from dogging.



HCP F 4

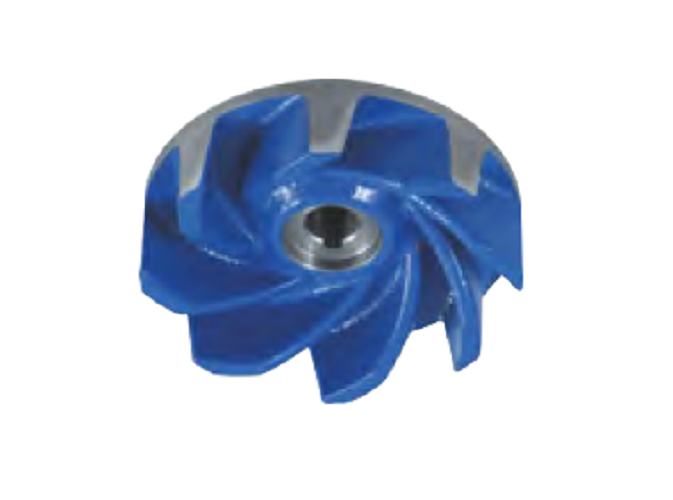

U Type Impeller
Semi-open(Vortex Impeller): produces a vortex (whirlpool effect) allowing long fibrous materials and other solid waste to pass through without contact with the impeller.[/vc_column_text]

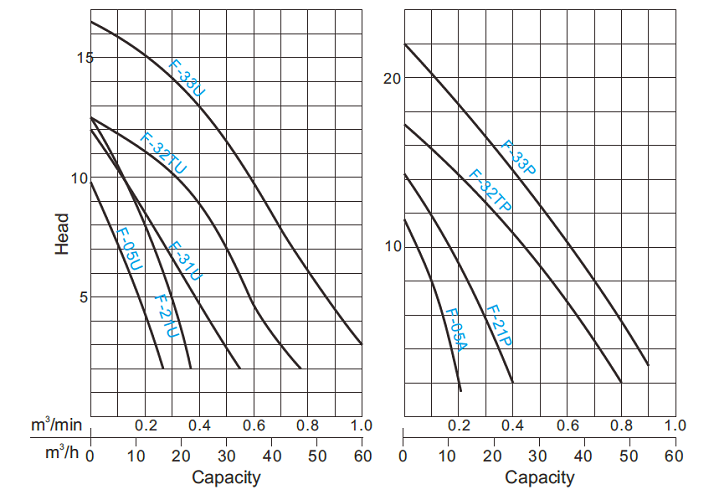

PERFORMANCE DATA HCP F Series

HCP F 5



SPECIFICATIONS DATA HCP F Series

Item Description
Liquid temp. 0-40°C(32~104°F)
Applications Gensa wastewater, sewage water and industrial waster
Max depth 30m
 Pump sect. Structure  Impeller Semi-open • Vortex
M. seal Double M. seals
 Bearing Ball type
 Material  Upper cover FC-200
Casing FC-200
 Impeller FC-200
M. seal Lower Sic/Sic • Upper: CA/CE
Motor sect. Motor Dry motor
2P (3000RPM)
Insulation B Class
 Frequency 50Hz
Protector Auto-cut
Material  Frame SUS304
Main shaft SUS410 (2-3-P : SUS403)
Cable VCT or HO7RN-F or SJOW/SOW

PERFORMANCE SPECFICATIONS DATA HCP F Series

Model Power
HP(kW)		 Discharge
Inch(mm)		  Phase Start
Method		 Head
m		 Capacity Weight kg
1/3		 Solid  Passage
mm		 Dimension (mm)
Length Width Height
m³/min  m³/h
F-05U ½(0.4) 2″ (50) 1 Capacitor 6 0.5 9 16 35 237 154 427
3 Direct 15
F-21U 1(0.75) 2″ (50) 1 Capacitor 8 0.2 12 18 35 237 154 427
3 Direct 17
F31U 1(0.75) 3″ (80) 1 Capacitor 6.5 0.3 18 19 30 278 173 457
3 Direct 18
F-32U 2(1.5) 3″ (80) 1 Capacitor 9 0.4 24 43 25 408 258 610
3 Direct 38 530
F-33U 3(2.2) 3″ (80) 1 Capacitor 11.5 0.5 30 45 25 408 258 610
3 Direct 39 530
F-21P 1(0.75) 2″ (50) 1 Capacitor 9 0.2 12 18 22 274 235 440
3 Direct 17
F-32TP 2(1.5) 3″ (80) 1 Capacitor 8.5 0.5 30 43 30 408 258 610
3 Direct 38 530
F-33P 3(2.2) 3″ (80) 1 Capacitor 10.5 0.6 36 45 30 408 258 610
3 Direct 39 530
F-05A ½(0.4) 2″ (50) 1 Capacitor 8 0.1 6 12 8 227 161 352
3 Direct
