| Air Compressor MEDO AC 0301A Series | |
|---|---|
| Rated Pressure: | 0.1 bar |

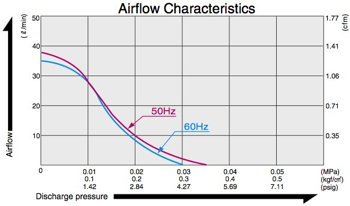

| Rated Airflow: | 28 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Maximum Pressure: | 0.3 bar |

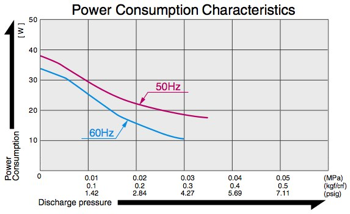

| Power Consumption: | 25 W |
| 25 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 10.000 h |
| Outlet: | ISO Rc 1/4 (female threaded) |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |

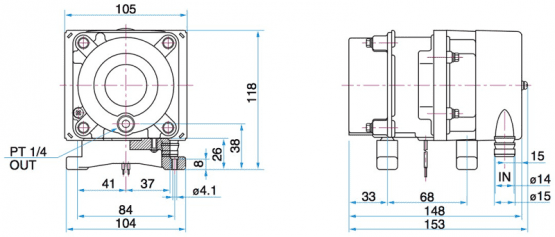

| Mounting Dimensions (L x W): | 68 x 84 mm |
| Gross Weight: | 1.9 kg |
| Leadwire Length: | 200 mm |
