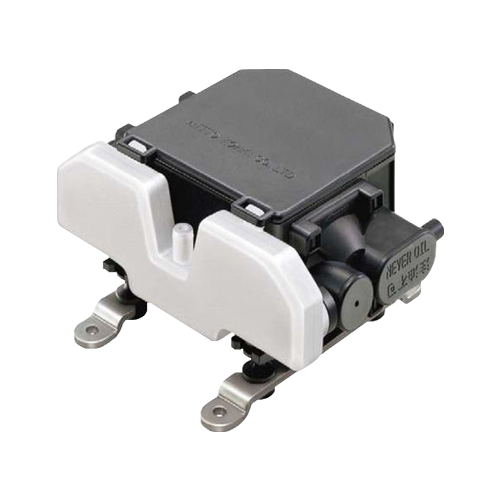

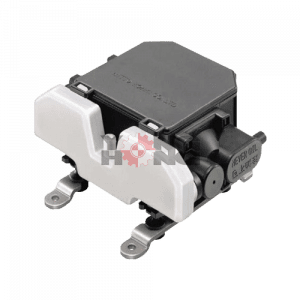

Air Compressor MEDO VC 0101S (Blower)

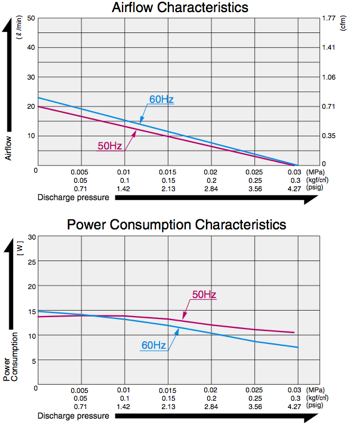

vc 0101 s blower airflow n power



Specification MEDO VC 0101S (Blower)

  Air Compressor MEDO VC 0101S (Blower)
Attainable Vacuum: n/a
Rated Airflow: 15 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.26 bar
Rated Pressure: 0.05 bar
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 5.000 h
Working Pressure Range: 0 to 0.26 bar
Outlet (Inlet): 7.5mm O.D. hose nipple
Duty Cycle: 60 minutes
Coil Insulation Class: B or its equivalent (JETL)
Mounting Dimensions (L x W): 66 x 100 mm
Gross Weight: 0.83 kg
Leadwire Length: 300 mm

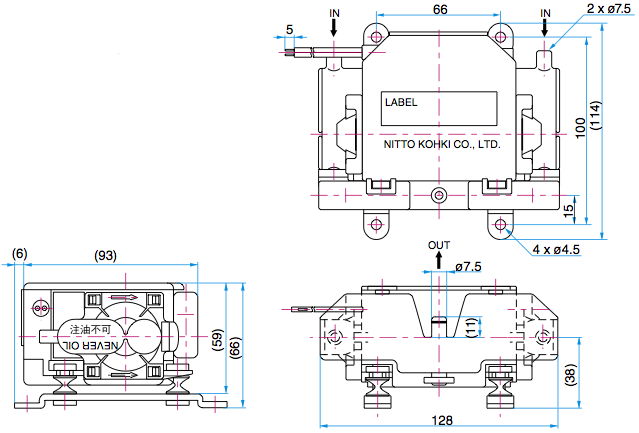

Dimension MEDO VC 0101S (Blower)

vc 0101 s dual blower dimensions 1
