Air Compressor MEDO VC 0101S (Dual)

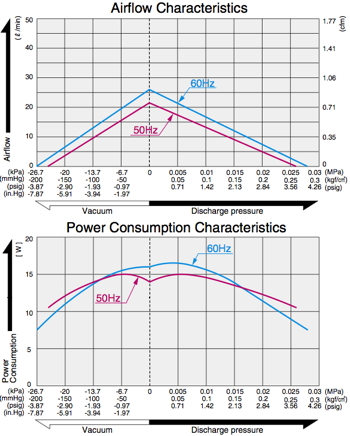

vc 0101 s dual airflow n power



Specification MEDO VC 0101S (Dual)

  Air Compressor MEDO VC 0101S (Dual)
Attainable Vacuum: -240 mbar
Rated Airflow: 15 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.26 bar
Rated Pressure: 0.05 bar
Power Consumption: 15 W
15 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 5.000 h
Working Pressure Range: -240 mbar to 0.26 bar
Outlet (Inlet): 7.5mm O.D. hose nipple
Duty Cycle: 60 minutes
Coil Insulation Class: B or its equivalent (JETL)
Mounting Dimensions (L x W): 66 x 100 mm
Gross Weight: 0.82 kg
Leadwire Length: 300 mm

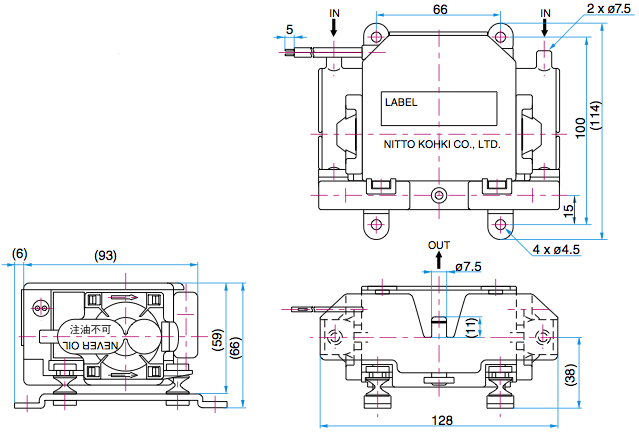

Dimension MEDO VC 0101S (Dual)

vc 0101 s dual blower dimensions
