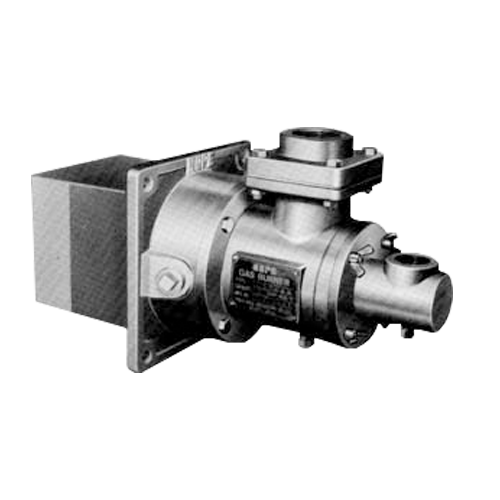

Gas Burner Hope LXG-A It is a high-quality product known for its durability and robustness, making it suitable for industrial applications, boiler work, and various oven sizes.
As luminous flame can be obtained in all ranges of turndown, this burner improved the heat efficiency of heat treatment furnaces heating furnaces and melting furnaces.
Fuel : Fuel gases
Standard pressure
| Type | Cap. | Air Vol | Connection | |
| kW (X 1,000kcal/h) | (m3/h) | Air | Gas | |
| LXG-1A | 58(50) | 60 | Rc 11/2 | Rc 1 |
| LXG-2A | 93(80) | 96 | ||
| LXG-3A | 140(120) | 144 | Rc 2 | |
| LXG-4A | 174(150) | 180 | ||
| LXG-5A | 233(200) | 240 | Rc 21/2 | Rc 11/2 |
| LXG-6A | 350(300) | 360 | Rc 3 | |
| LXG-7A | 465(400) | 480 | Rc 4 | Rc 2 |
| LXG-8A | 700(600) | 720 | ||

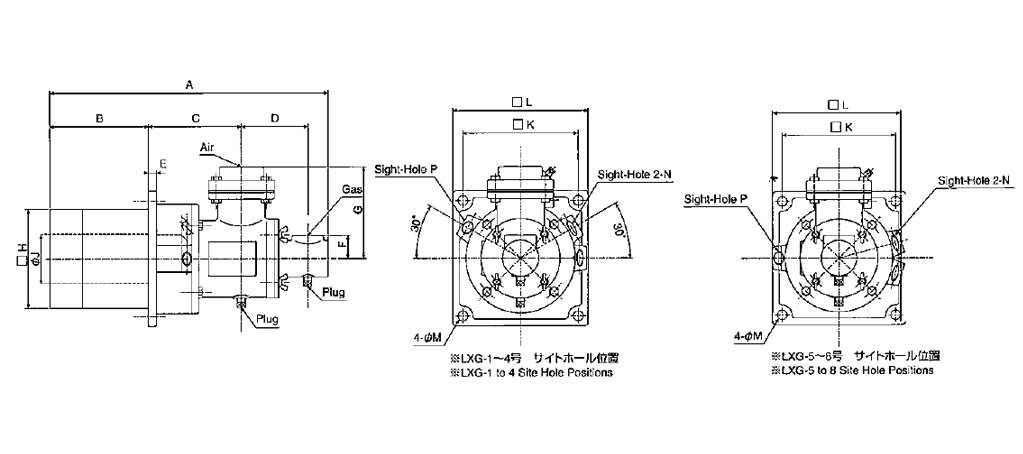

| Type | A | B | C | D | E | F | G | H | J | K | L | M | N (g) | P (G) | Mass (kg) |
| LXG-1A | 423 | 150 | 141 | 101 | 14 | 35 | 139 | 150 | 68 | 175 | 205 | 15 | 3/4 | 1/2 | 23 |
| LXG-2A | 84 | ||||||||||||||
| LXG-3A | 443 | 170 | 144 | 94 | |||||||||||
| LXG-4A | |||||||||||||||
| LXG-5A | 577 | 198 | 197 | 138 | 55 | 179 | 230 | 124 | 265 | 300 | 3/4 | 55 | |||
| LXG-6A | 181 | 134 | |||||||||||||
| LXG-7A | 659 | 250 | 200 | 160 | 16 | 60 | 192 | 280 | 174 | 320 | 350 | 1 | 82 | ||
| LXG-8A |
| Condition | In the Air |
| Air Pressure | 6kPa |
| Fuel | LPG |
| Excess Air Ratio | 1.1 |
| Type | Ø D | L | L₁ |
| LXG-1A | 80 | 700 | 150 |
| LXG-2A | 100 | 800 | 150 |
| LXG-3A | 120 | 1000 | 170 |
| LXG-4A | 120 | 1100 | 170 |
| LXG-5A | 140 | 1200 | 198 |
| LXG-6A | 180 | 1400 | 198 |
| LXG-7A | 400 | 1700 | 250 |
| LXG-8A | 450 | 2000 | 250 |
