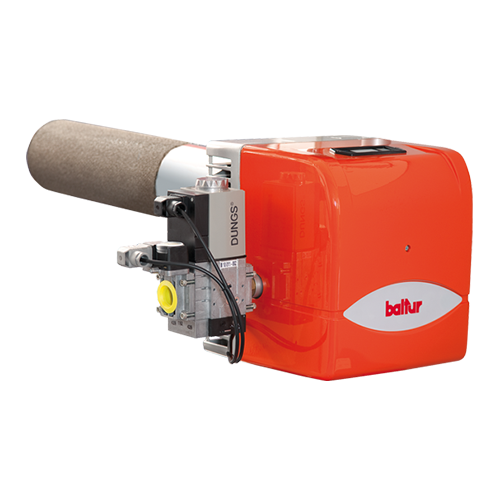

Gas burners BALTUR (BPM)
BPM
Modulating gas pre-mixed burners.
Low Nox
Series BPM
TECHNICAL DATA
| MODEL | Flow rate (Sm3/H) | thermal power(kW) to ErP | thermal flow rate(kW) | Power Supply | Fan motor power | Weight | DIMENSIONS (mm) | ||||||
| Min | Max | Max | Min | Max | Min | Voltage | Frequency | (kW) | kg | W | D | H | |
| BPM 10 EVO W | 0.2 | 1 | – | – | 10 | 2 | 230 | 50/60 | – | – | 540 | 300 | 320 |
| BPM 10 EVO | 0.2 | – | – | – | 10 | 2 | 230 | 50/60 | 0.1 | 8 | 540 | 300 | 320 |
| BPM 40 | 2.3 | 3.7 | 35 | – | – | – | 230 | 50/60 | 0.1 | 8 | 620 | 480 | 310 |
| BPM 40 EVO | 2.3 | 3.7 | – | – | 35 | 22 | 230 | 50/60 | 0.1 | 9 | 620 | 480 | 310 |
| BPM 40 EVO W PORT.35KW | 2.3 | 4.6 | – | – | 43 | 22 | 230 | 50/60 | 0.1 | – | 620 | 480 | 310 |
| BPM 40 EVO PORT.35KW | 2.3 | 4.6 | 43 | 22 | – | – | 230 | 50/60 | 0.1 | – | 620 | 480 | 310 |
| BPM 90 EVO-W | 2.1 | 7.4 | 20 | 70 | – | – | 230 | 50/60 | 0.2 | 12 | 580 | 340 | 360 |
| BPM 90 EVO PORT.70KW | 2.1 | 7.4 | 20 | 70 | – | – | 230 | 50/60 | 0.2 | 13 | 580 | 340 | 360 |
