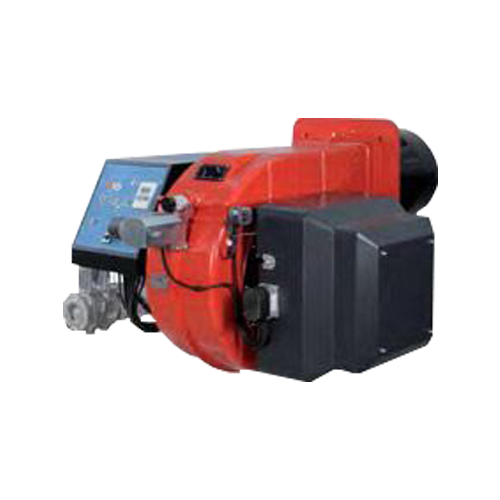

Burners C I B unigas Low NOx Class 2 MILLE R1025-R1040 is a Class 2 gas burner designed for use with natural gas (NG). It is suitable for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation. This burner also features Low NOx technology to reduce air pollution.
The control panel facia is printed with a mimic diagram complete with lamps to show the sequential stages of the burner operation. Despite to its considerable dimension, this series permit all standard maintenance operations to be carried out by one single person.
The new air inlet system with built-in silencer ensures the lowest noise levels. Each system can be further distinguished by the equipment provided:
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| R1025 | M.PR.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.PR.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.PR.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.PR.S.xx.A.1.65.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.PR.S.xx.A.1.80.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.PR.S.xx.A.1.100.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.65.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.80.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.100.EA | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.65.ES | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.80.ES | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1025 | M.MD.S.xx.A.1.100.ES | 2550 | 8700 | 270 | 921 | 500 | 400 | 3Nac 50 | 19 | 18.5 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.65.EA | 2550 | 9500 | 270 | 1005 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.80.EA | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.PR.S.xx.A.1.100.EA | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.65.EA | 2550 | 9500 | 270 | 1005 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.80.EA | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.100.EA | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.65.ES | 2550 | 9500 | 270 | 1005 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.80.ES | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1030 | M-.MD.S.xx.A.1.100.ES | 2550 | 10600 | 270 | 1122 | 500 | 400 | 3Nac 50 | 22.5 | 22 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.80.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.100.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.PR.S.xx.A.1.125.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.80.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.100.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.125.EA | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.80.ES | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.100.ES | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
| R1040 | M-.MD.S.xx.A.1.125.ES | 2550 | 13000 | 270 | 1376 | 500 | 400 | 3Nac 50 | 30.5 | 30 | 0.5 | IP40 |
