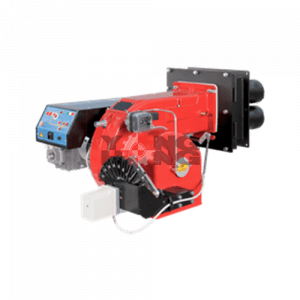

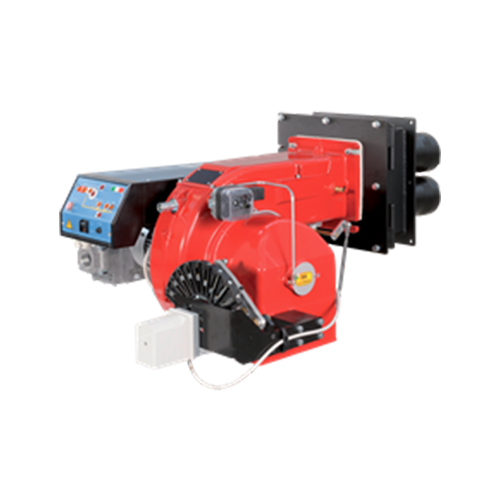

Burners C I B unigas Low NOx Class 2 TECNOPRESS VS P60 VS-P73 VS is a Class 2 gas burner designed for use with natural gas (NG). It is suitable for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation. This burner also features Low NOx technology to reduce air pollution.
TECNOPRESS burners cover a wide range of applications from 332 to 2150 kW and are suitable either for heating generators with high back pressure or suction in combustion chamber.
This series represents the highest expression of our experience on gas burners. The combustion head “bell shaped” is able to produce high performance flame.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| P60 | M-.PR.S.xx.VS.0.50 | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.PR.S.xx.VS.0.65 | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.0.50 | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | – | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.0.65 | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | – | 1.5 | 0.5 | IP40 |
| P60 | M-.PR.S.xx.VS.1.50 | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.PR.S.xx.VS.1.65 | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.50 | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.65 | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.PR.S.xx.VS.1.50.EA | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.PR.S.xx.VS.1.65.EA | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.50.EA | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.65.EA | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.50.ES | 332 | 1100 | 35 | 116 | 360 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P60 | M-.MD.S.xx.VS.1.65.ES | 332 | 1100 | 35 | 116 | 500 | 400 | 3Nac 50 | 2 | 1.5 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.50 | 300 | 1650 | 32 | 175 | 360 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.65 | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.80 | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.50.EA | 300 | 1650 | 32 | 175 | 360 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.65.EA | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.PR.S.xx.VS.1.80.EA | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.50.EA | 300 | 1650 | 32 | 175 | 360 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.65.EA | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.80.EA | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.65 | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.80 | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.50.ES | 300 | 1650 | 32 | 175 | 360 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.65.ES | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P72 | M-.MD.S.xx.VS.1.80.ES | 300 | 1650 | 32 | 175 | 500 | 400 | 3Nac 50 | 2.7 | 2.2 | 0.5 | IP40 |
| P73 | M-.PR.S.xx.VS.1.50.EA | 300 | 2150 | 32 | 228 | 360 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.PR.S.xx.VS.1.65.EA | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.PR.S.xx.VS.1.80.EA | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.50.EA | 300 | 2150 | 32 | 228 | 360 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.65.EA | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.80.EA | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.50.ES | 300 | 2150 | 32 | 228 | 360 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.65.ES | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
| P73 | M-.MD.S.xx.VS.1.80.ES | 300 | 2150 | 32 | 228 | 500 | 400 | 3Nac 50 | 3.5 | 3 | 0.5 | IP40 |
