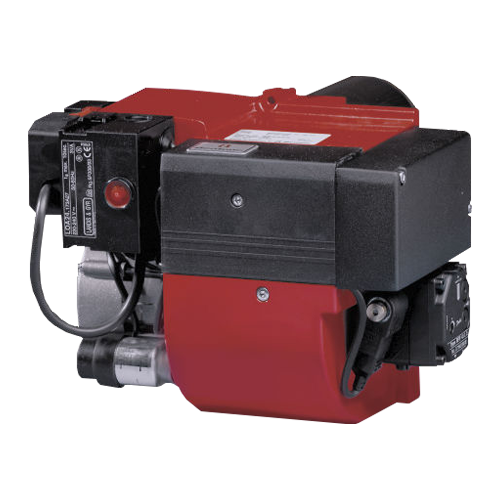

Oil burners One stage BENTONE ST133
Oil burners One stage BENTONE ST133 is a burner with a one-stage combustion system, making it convenient to use and allowing for adjustable flame levels according to job requirements. The single-stage combustion system simplifies maintenance and ensures ease of operation. The BENTONE ST133 is known for its durability and suitability for various environments.
Oil burners One stage BENTONE ST133
A compact burner, easy to install. Ducted or conventional air inlet. Easily accessible for service. Industry standard components are used. The respect of the environment and advanced combustion technology ensure optimal energy utilisation.
Oil Burner
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Compact design
– Industry standard components easily available
– The removal of one securing screw allows access to all internal components
– Ducted or contact facilitates the installation

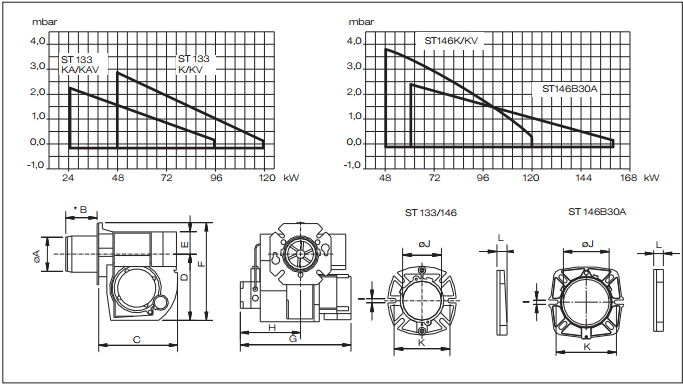

| Type | ST133 | ST133 | ST146 | ST146 | |||||
| Model | KA/KAV | K/KV | K/KV | B30A | |||||
| Capacity | kg/h | 2.0-8.0 | 4.0-10.0 | 1.0-10.0 | 5.0-13.3 | ||||
| kW | 24-95 | 47-119 | 47-119 | 59-158 | |||||
| Motor | V/Hz/W | 230/50/110 | |||||||
| Cntrol box | Siemens | ||||||||
| Oil preheater | . | . | . | ||||||
| Fuel pump | Danfoss, Suntec | ||||||||
| Adjustable burner head | . | ||||||||
| Fan wheel | 133 | 146 | |||||||
| Ducted air inlet | . | ||||||||
| Silencer | . | ||||||||
| Gross weight | kg c. | 13 | |||||||
| Volume | m³ c. | 0.05 | |||||||
