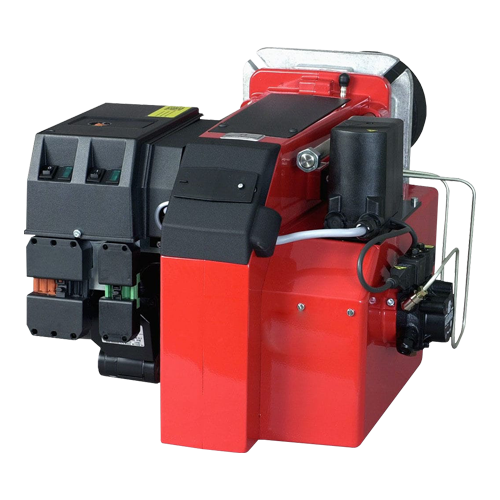

Oil burners Two stage BENTONE B45 is a burner with a two-stage combustion system, allowing for adjustable flame levels according to job requirements. The two-stage system enhances energy efficiency and reduces the accumulation of soot during combustion. The BENTONE B45 is known for its durability and suitability for various environments.
Available in versions up to 45.5 kg/h in 2-stage version. Hydraulic adjustment of the nozzle assembly is optional. Quiet in operation. A soft pulsation free start. Wide adjustment range and high efficiency ensure lowest possible energy consumption.
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance Boiler
– Industry standard components easily available
– Designed for 2-stage operation
– Available with hydraulic air adjustment
– Plug-in contact facilitates the installation

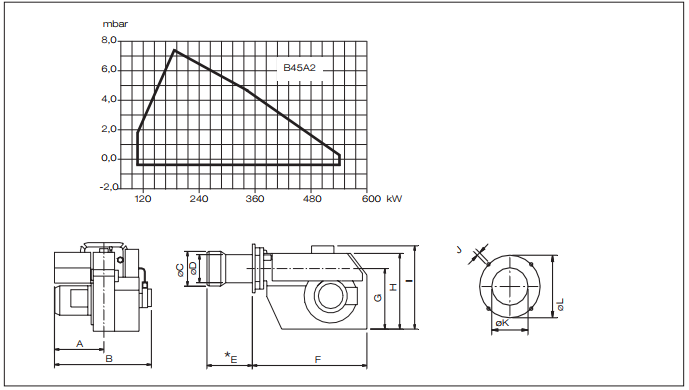

| Type | B45A2 | ||
| Capacity | kg/h | 8.5-45.5 | |
| kW | 101-540 | ||
| Motor | V/Hz/W | 230/50/450 | |
| Cntrol box | Siemens | ||
| Fuel pump | Danfoss, Suntec | ||
| Gross weight | kg c. | 34 | |
| Volume | m³ c. | 0.22 | |
