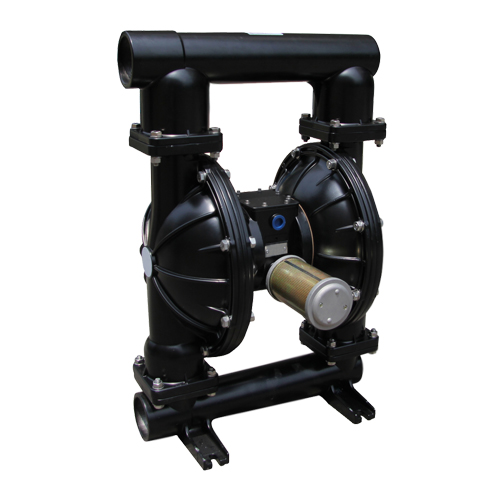

Chempro Diaphragm Pump DP80 is the smallest model in the DP family. The pump is made of plastic material in the AL type, has the advantage of being resistant to chemical corrosion. The diaphragm pump has suction-compression operation. Superbly designed It has corrosion resistance, good pressure resistance and has a long service life. Installed in an area with sparks (Explosion Proof) due to the wind to drive.
| Material Quality | |
| Pump body | Aluminum |
| Diaphragm | Santoprene, Hytrel, teflon, Viton, EPDM, Buna-N |
| Valve Seat | Teflon, Santoprene, Hytrel, Viton, Stainlees stee |
| Valve Ball | Teflon, santoprene, Hytrel, Viton, Ceramic |
| Center block | PP, Aluminum, Stainlees steel |
| Technical Parameter | ||
| Suction lift [mwc] | dry | 5 |
| wet | 8 | |
| Max particle diameter [mm] | 9.4 | |
| Suction and discharge Size [in] | 3″ | |
| AIR inlet size [in] | 3/4 | |
| Max frow [I/min] | 1060 | |
| Maxhead [m] | 84 | |
| Max air inlet pressure [bar] | 8.4 | |
