Condensate Removal Pump LITTLE GIANT VCMA-PRO Series

Condensate Pump LITTLE GIANT VCMA-PRO Series

Condensate Pump LITTLE GIANT VCMA-PRO Series Designed for automatic collection and removal of condensate from air conditioning.

Category Tags , , , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Condensate Pump LITTLE GIANT VCMA-PRO Series

Condensate Pump LITTLE GIANT VCMA-PRO Series Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Feature LITTLE GIANT VCMA-PRO Series

  • Vertical centrifugal pump design
  • Stainless steel motor shaft
  • Automatic start and stop operation
  • Galvanized steel “quick install” wall mount bracket
  • Rubber feet for vibration/noise dampening
  • Thermally protected, fan cooled motor
  • Maximum water temperature: 140°F/60°C
  • 6, 3-conductor cable with grounded 3-prong plug



Specifications LITTLE GIANT VCMA-PRO Series

Model HP Input Voltage Hz Amps Watts Discharge Size Check Valve Overflow
Detection
Switch		 Cord Weight (lbs)
VCMA-20UL-PRO 1/30 115 60 1.5 93 3/8″ (9.5 mm) 3/8″ (9.5 mm) No 6′ (1.8 r m) 5.5 (2.5 Kg)
VCMA-20UL-PRO 1/30 230 50/60 0.7/0.6 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) No 6′ (1.8 r m) 5.5 (2.5 Kg)
VCMA-2OULS-PRO 1/30 115 60 1.5 93 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8m) 5.5 (2.5 Kg)
VCMA-2OULS-PRO 1/30 230 50/60 0.7/0.6 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8m) 5.5 (2.5 Kg)
VCMA-20S-PRO 1/30 230 50 0.7 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 r m) 5.5 (2.5 Kg)
VCMA-20S-PRO 1/30 230 50 0.7 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 9.8′ (3m) 6 (2.7 Kg)

VCMA-20-PRO with Tubing

Model HP Input Voltage Hz Amps Watts Discharge
Size		 Check Valve Overflow
Detection
Switch		 Cord Weight (lbs)
VCMA-20ULST-PRO 1/30 115 60 2 93 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 m) 5.5 (2.5 Kg)
VCMA-20ULST-PRO 1/30 230 50/60 0.7/0.6 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 m) 5.5 (2.5 Kg)
VCMA-20ST-PRO 1/30 230 50 0.7 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 m) 5.5 (2.5 Kg)

VCMA-20-PR0 with Anti-Sweat Sleeve

Model HP Input Voltage Hz Amps Watts Discharge Size Check Valve Overflow
Detection
Switch		 Cord Weight (lbs)
VCMA-20ULS-C-PRO 1/30 115 60 1.5 93 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 m) 5.5 (2.5 Kg)
VCMA-2OS-C-PRO 1/30 230 50 0.7 75 3/8″ (9.5 mm) 3/8″ (9.5 mm) Yes 6′ (1.8 m) 5.5 (2.5 Kg)

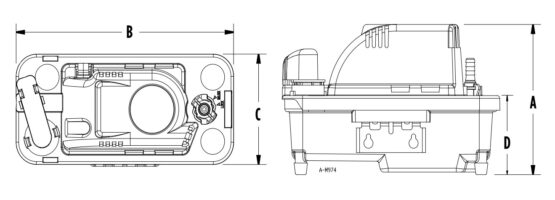

Dimension LITTLE GIANT VCMA-PRO SeriesDimension LITTLE GIANT VCMA

Model A B C D
VCMA-20UL-PRO 6.5″ (165.1mm) 10.2″ (259.1 mm) 4.8″ (121.9 mm) 3.4″ (86.4 mm)
VCMA-20ULS-PRO 6.5″ (165.1mm) 10.2″ (259.1 mm) 4.8″ (121.9 mm) 3.4″ (86.4 mm)
VCMA-20ULST-PRO 6.5″ (165.1mm) 10.2″ (259.1 mm) 4.8″ (121.9 mm) 3.4″ (86.4 mm)
VCMA-20ULS-C-PRO 6.8″ (172.7mm) 10.3″ (261.6 mm) 5.1″ (129.5 mm) 3.4″ (86.4 mm)
