ELECTRIC chain hoist Demag DCM-Pro Manulift Series product quality control from germany,dual hoist speed ,DCM-Pro series has capacity load 80-250 Kg.Product is ergonomic single-handed load handing at the work.

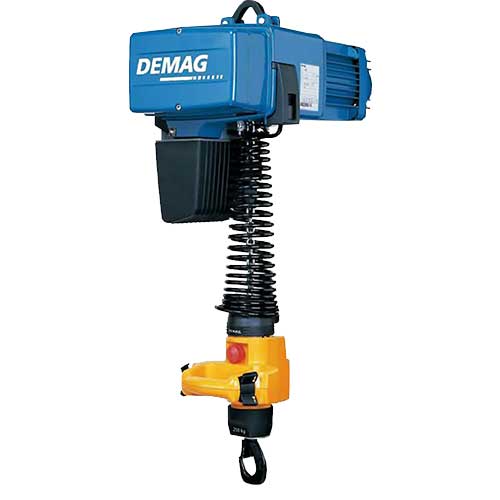

Electric Chain Hoist DEMAG DCM-Pro series Manulift
The DCM-Pro Manulift was developed for handling loads quickly and safely with only one hand. The new DCM-Pro is based on the lifting unit of the DC-Pro chain hoist and the DSM-C control unit which is connected to it by a helical cable. Thanks to the control unit which is rigidly connected to the load handling attachment for right and left-handed operation, the operator only needs one hand to operate the chain hoist and guide the load.The quick-change coupling enables a wide variety of load handling attachments to be changed with ease. All Manulift load handling attachments are fitted with a connecting pin with a swivel lock, which snaps into the quick-change coupling. It can be easily disconnected by lifting the unlocking sleeve.Manulift units can travel on Demag KBK profile sections and I-beams, which enables them to be flexibly integrated into work and production processes.
| Load Capacity | Manulift | Hoist Speed | Motor size | Hook path | Group of mechanisms | Reeving | Max.weight for 2,8 and 4,3 hook path | |
| (kg.) | Type | m/min (50Hz) | m/min (60Hz) | (m.) | FEM | (kg.) | ||
| 80 | DCM-Pro 1-… | 8/2 | 9.6/2.4 | ZNK 71 B 8/2 | 2.8 and 4.3 | 4m | 1/1 | 22/23 |
| DCM-Pro 2-… | 16/4 | 19.2/4.8 | ||||||
| 125 | DCM-Pro 1-… | 8/2 | 9.6/2.4 | |||||
| DCM-Pro 2-… | 16/4 | 19.2/4.8 | ||||||
| 250 | DCM-Pro 2-… | 8/2 | 9.6/2.4 | 2m+ | ||||
| DCM-Pro 5-… | 16/4 | 19.2/4.8 | ZNK 80 B 8/2 | 4m | 28/29 | |||
