ELECTRIC CHAIN HOIST NITCHI MH-5 SERIES With Plain trolley type

ELECTRIC CHAIN HOIST NITCHI MH-5 SERIES With Plain trolley type

Electric Chain Hoist NICHI MH-5 With Plain trolley high quality products imported from Japan.4-way Available in all models,scale was raised first. 0.5 until 5 tonnes, a power supply at 380V and 220V

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

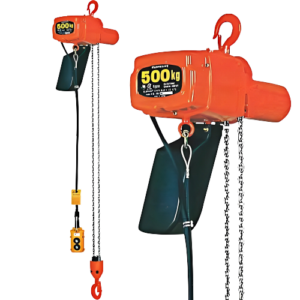

ELECTRIC CHAIN HOIST NITCHI MH-5 SERIES With Plain trolley type

Featured NITCHI MH-5 SERIES With Plain trolley type

NITCHI MH-5 SERIES With Plain trolley type

  • It can be used in various work environments With a plain trolley coupled with the MH-5, the MHP-5 allows an operator to manually push the load in a traversing direction. It is an affordable model and is suited for applications that do not require heavy-duty operations.（MHP-5 Series）
  • Speed change suitable for precision work With a plain trolley coupled with the MHT-5 two-speed electric chain hoist, the MTP-5 allows an operator to manually push the load in a traversing direction.While available at an affordable price, it is capable of performing pinpoint positioning through two-speed lifting.（MTP-5 Series）
  • It can be use 100V home power supply With a plain trolley coupled with the MHC-5 single-phase electric chain hoist, the MCP-5, which runs on home power supply, can be moved manually in a traversing direction simply by pushing the load.（MCP-5 Series）



SPECIFICATIONS DATA

Single Speed Electric Chain Hoist

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push
load (t) lift (m) beams (kg) source cable button cable
50Hz 60Hz 50Hz 60Hz b(mm) (m) S(m)
MHP5005 0.5 4 0.83 1 8.6 10 75,100,125 61 0.7 5 3.6
MHP5010 1 1.17 1.4 6.2 7.3 63 0.9
MHP5020 2 2.5 3 6.7 7.9 100,125,150 116 2.3 3.8
MHP5030 3 4.4 5.2 130 3.5
MHP5050 5 2.6 3.1 125,150,175 175 13.5



SPECIFICATIONS DATA

Dual Speed Electric Chain Hoist

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push
load (t) lift (m) fast speed slow speed fast speed slow speed beams (kg) source cable button cable
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz b(mm) (m) S(m)
MTP5005 0.5 4 0.83 1 0.21 0.25 8 9.4 1.9 2.2 75,100,125 63 0.7 5 3.6
MTP5010 1 4.3 5 1 1.2 64 0.9
MTP5020 2 1.83 2.2 0.46 0.55 4.8 5.6 1.2 1.4 100,125,150 119 2.3 3.8
MTP5025 2.5 3.8 4.4 1 1.1 133 3.5
MTP5050 5 1.9 2.2 0.5 0.6 125,150,175 178 13.5



SPECIFICATIONS DATA

Single Speed 1-phase Electric Chain Hoist

Item no. Rated Standard Lifting Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push
load (t) lift (m) motor output beams (kg) source cable button cable
(kW) 50Hz 60Hz b(mm) (m) S(m)
MCP5005 0.5 4 0.62 5.4 6.4 7.5E+07 66 0.7 5 3.6
MCP5010 1 2.7 3.2 0.9
