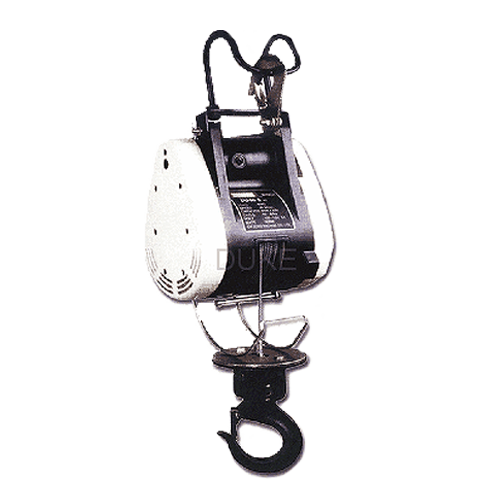

Electric Mini Wire Winch DUKE DU-180A Series

  • Model No. : DU-180A
  • Certification : CE ,TUV ,ISO 9001 ,EMC
  • Made in : Taiwan, ROC
Facebook
Twitter
Email
Print

ELECTRIC MINI WIRE WINCH DUKE DU-180A SERIES

Electric Mini Wire Winch Prevention of Reverse Roll Device

Spec

  • Height(cm) : 33
  • Weight(kg) : 26
  • Length(cm) : 50
  • Width(cm) : 25
  • machine size : 24cmX18cmX66cm

Key Features

Model:DU-180A
Capacity(kg):180kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Mechanical Load Brake.

Safety Device: (1) Electric Limit Switch. (2) Emergency Stop

2) Rugged Aluminum Alloy Body Construction Provide Lightweight, Compact

& Short Headroom.

3) Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4) All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.

Features:

  • Braking: Dual braking system combines dynamic and mechanical braking, provides instant and safe braking.
  • Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
  • Upper limit switch: When hook disc touch it, the motor will automatically stop.
  • Lower limit switch: The design is in order to prevent wire rope under-wound
  • Push button: Easy to maintenance, simply layout of the control with 7M power cable as standard and emergency stop as option.
  • IP RATE: Heavy duty IP65 waterproof.
  • Hook: 360℃ swivel hook as standard



MODEL CAPACITY (KG) Wire Rope  Lift (M) Power(Voltage) CYCLE (HZ) MOTOR POWER (Kw) LIFTING SPEED (M/MIN.) WIRE ROPE (mm)
DU-180A 180 30/45 100V-120V/200V-240V 50/60 1.2 19/23 4-May

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan.
We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”.
Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.

Products range are :

AC power:

  • Electric mini chain hoist
  • Electric mini wire winch
  • Electric wire winch
  • Electric chain hoist
  • Electric all-purpose wire winch.

DC power:

  • OFF-ROAD winch..
