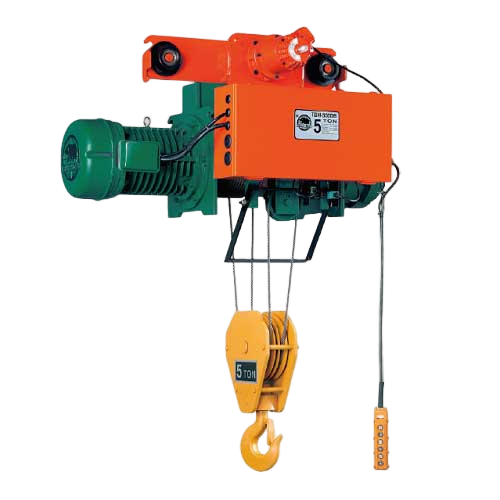

blackbear-TB-SERIES-1

Electric wire rope hoist BLACKBEAR TB Series (DC Brake)

Electric wire rope hoist BLACKBEAR TB Series (DC Brake) Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY DC Brake Electric wire rope hoist high quality products imported from Taiwan with DC Motor brack , is a Monorail Trolley type,has capacity load 5-10 Tons with single speed and Dual speed, (Up-Down-Left-Right)

Category Tags , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric wire rope hoist BLACKBEAR TB Series

Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY DC Brake TB Series

Electric wire rope hoist BLACKBEAR TB Series Electric wire rope hoist BLACKBEAR SB-SC-SE Series Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY DC Brake use INTORQ (Lenze Germany) DC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURE

  1. DC Brake New design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free
  2. MOTOR
    Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications.
  3.  Control box IP-20 control box is applied; Higher IP degree is available upon request.
  4. Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  5. Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  6. SheaveThe proper diameter of sheave ensures the operation and life span of wire rope.
  7. Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°



TB SERIES 2



SPECIFICATIONS AND DIMENSIONS DATA BLACKBEAR TB Series

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm) Approximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D Adjust for Std.
I-Beam
(mm)
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual Single  Dual Single  Dual
TBH-500DB 5 6 7.3 6.1 2.2
4 P		 40 40/20 18 15 0.6
4 P		 40 40/20 Ø 10 2/4 1250 553 722 875 220 255 488 488 125-175 590
TBHD-500DB 9 7.3/2.4 6.1/2.0 2.2/0.73
4/12P		 18/6 15/5 0.6/0.2
4/12P		 603 772 925 630
12 743 912 1065 710
TBH-750DB 7.5 6 7.3 6.1 3
4p		 40 40/20 20 17 1.1
4 P		 40 40/20 Ø 14 2/4 2000 608 867 929 240 240 612 612 150-200 990
TBHD-750DB 9 7.3/2.4 6.1/2.0 3/1
4/1 2P		 20/6 17/6 1.1/0.37
4/12P		 743 1002 1064 1020
12 833 1092 1075 1060
TBL-1000DB 10 6 5.0 4.2 3
4p		 40 40/20 18 15 0.75X2
4 P		 40 40/20 Ø 16 1/4 2000 605 849 911 340 340 640 725 150-200 970
TBLD-1000DB 9 5.0/1.7 4.2/1.4 3/1
4/1 2P		 18/6 15/5 0.75/0.25X2
4/12P		 573 917 979 640 725 1000
12 773 1017 1079 585 625 1040

2.Dual speed model under green shadow.
3. Traversing pinion 5 ton M3.5x12t, 7.5 ton M3.5x20t, 10 ton M3.5x23t.
4.Traversing motor standard supply, 50 Hz or 60Hz all used 4 pole, or please specify.
5. Traversing motor: 5 ton used planetary reducing gear motor, 7-10 ton used reducing gear motor.
