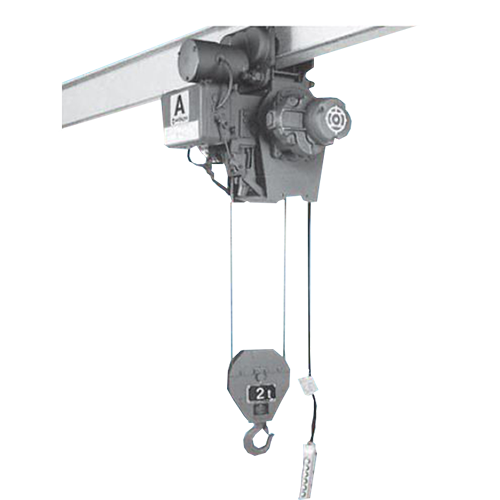

Wire Rope Hoist HITACHI A-Series Standard Headroom Type Hoist

HITACHI A-Series Standard Headroom Type Hoist This is an orthodox type of hoist widely utilized for general purposes. It boasts high performance for use in rugged jobs such as general production in factories, mining, railroads, and warehouses.

Facebook
Twitter
Email
Print

Wire Rope Hoist HITACHI A-Series Standard Headroom Type Hoist

SPECIFICATIONS DATA

Capacity(t) 1 2 3
Hoisting(m) 6 and 12
Speed(m/min) 50Hz 7 6 5
60Hz 8.4 7 6
Hoisting Motor (KW) 50Hz 1.2 2.1 2.6
60Hz 1.5 2.4 3.1
No.of poles 4
Speed(m/min) 50Hz 21
60Hz 25
Traversing Motor (KW) 50Hz 0.3 0.3 0.45
60Hz 0.36 0.36 0.55
No.of poles 4
No.of Falls 2
Wire Rope Composition 6×Fi(29)-B
Diam(mm.) 8 11.2 14
Rating 25% ED 250 Starts/h
Operating method Floor-controlled Pushbutton operation
Electric source(3 phase) 200V 50/60Hz,220V 60Hz,380-400V 50Hz,440-460V 60Hz
Contral voltage (V) 24-27
