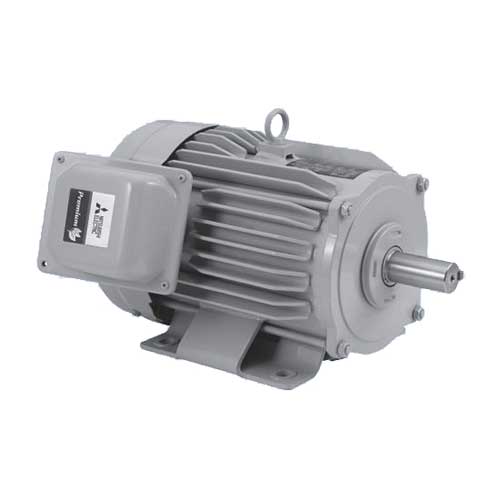

Electric Motor MITSUBISHI SF-PRP Series

Electric Motor MITSUBISHI SF-PRP Series are IE 3 standard motors that save energy. IP 55 waterproof performance, tested for water resistance To comply with JIS C 4034-50, so it can be safely used outdoors.



SPECIFICATIONS DATA MITSUBISHI SF-PRP Series

MODEL Frame number Head Resistance Output (KW)
Class 2P 4P 6P
SF-PRP 80M E 0.75 0.75
90L 1.5,2.2 1.5 0.75
100L 2.2 1.5
112M 3.7 3.7
2.2
132S B 5.5,7.5 5.5 3.7
132M 7.5 5.5
160M 11.15 11 7.5
160L 18.5 15 11
180M 22 18.5,22 15
180L F 30
180LD 30
18.5,22
200 LD 37,45
37,45 30,37
225S 55
55 45

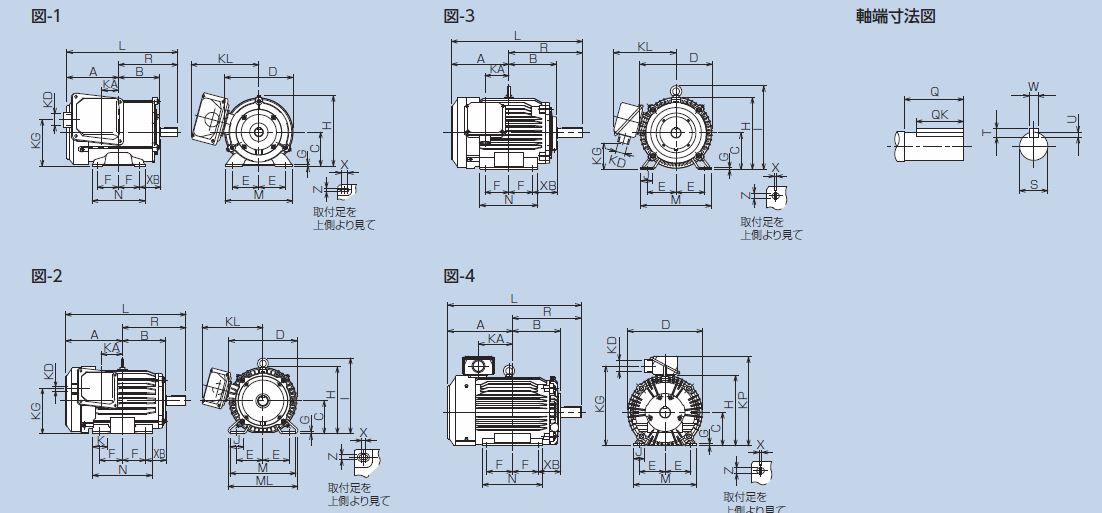

dimension mitsubishi SF PRP



DIMENSIONS DATA MITSUBISHI SF-PRP Series

Fig Motor
A B C* D E F G H I J K KA KD KG KL (KP)
1 122 97 80 162 62.5 50 3.2 166  –  –  – 39.5 PF 3/4 109 159
143 116.5 90 184 70 62.5 4 191  –  –  – 53 PF 3/4 123 173
2 173 132 100 207 80 70 6.5 203.5 230 40 45 65 PF 3/4 136 185
181 139 112 228 95 70 6.5 226 253 40 45 69 PF 3/4 151 196
218
211.5 158 132 266 108 89 6.5 265 288 40 45 75 PF 1 177 223
230.5 177 132 266 108 105 6.5 265 288 40  – 94 PF 1 177 223
3 252 209 160 318 127 127 8 316 367 50  – 5 PF 1 1/4 116 274
274 231 160 318 127 120.5 8 316 367 50  – 127 PF 1 1/4 116 274
292.5 237.5 180 363 139.5 139.5 8 359 410 50  – 127 PF 1 1/2 140 296
311.5 156.5 180 363 139.5 139.5 8 359 410 50  – 146 PF 2 135 296
4 349 258.5 180 406 139.5 139.5 11 381  – 58  – 184 PF 2 432 487
355 282 200 446 159 152.5 11 421  – 64  – 145 PF 2 487 567
425 282 225 446 178 143 11 446  – 70  – 205 PF 2 1/2 512 592
