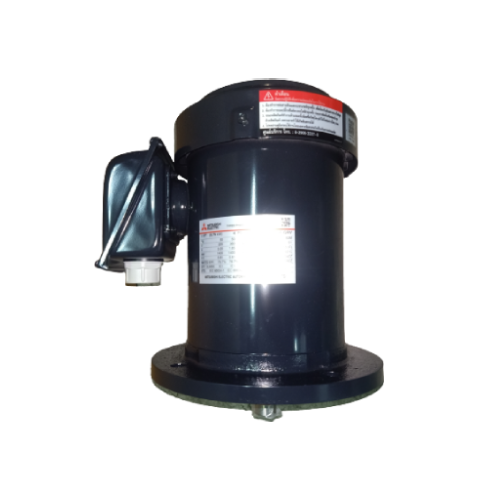

Electric Motor MITSUBISHI SF-QRV Series (Vertical flange type) 3-phase Electric motor SF-QRV Series operates equivalently to SF-JRV Series.
Electric Motor MITSUBISHI SF-QRV Series (Vertical flange type) 3-phase motor that complies with both JIS (Japanese Industrial Standard) and IEC (International Electrotechnical Commission) standards. Electric motor SF-QV Series operates equivalently to SF-JRV Series.
| Model | Power (HP) |
Pole | IP | Voltage |
|---|---|---|---|---|
| SF-QRV | 1/4HP | 2P | IP.55 | 220/380V |
| SF-QRV | 1/2HP | 2P | IP.55 | 220/380V |
| SF-QRV | 1HP | 2P | IP.55 | 220/380V |
| SF-QRV | 2HP | 2P | IP.55 | 220/380V |
| SF-QRV | 3HP | 2P | IP.55 | 220/380V |
| SF-QRV | 5HP | 2P | IP.55 | 220/380V |
| SF-QRV | 5HP | 2P | IP.55 | 380-440V |
| SF-QRV | 7.5HP | 2P | IP.55 | 220/380V |
| SF-QRV | 7.5HP | 2P | IP.55 | 380-440V |
| SF-QRV | 10HP | 2P | IP.55 | 220/380V |
| SF-QRV | 10HP | 2P | IP.55 | 380-440V |
| SF-QRV | 1/4HP | 4P | IP.55 | 220/380V |
| SF-QRV | 1/2HP | 4P | IP.55 | 220/380V |
| SF-QRV | 1HP | 4P | IP.55 | 220/380V |
| SF-QRV | 2HP | 4P | IP.55 | 220/380V |
| SF-QRV | 3HP | 4P | IP.55 | 220/380V |
| SF-QRV | 5HP | 4P | IP.55 | 220/380V |
| SF-QRV | 1/4HP | 6P | IP.55 | 220/380V |
| SF-QRV | 1/2HP | 6P | IP.55 | 220/380V |
| SF-QRV | 1HP | 6P | IP.55 | 220/380V |
| SF-QRV | 2HP | 6P | IP.55 | 220/380V |
| SF-QRV | 3HP | 6P | IP.55 | 220/380V |
| SF-QRV | 5HP | 6P | IP.55 | 220/380V |
