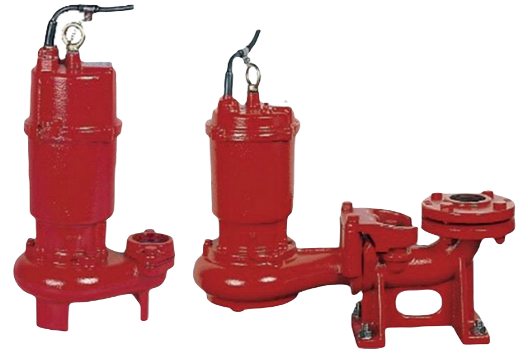

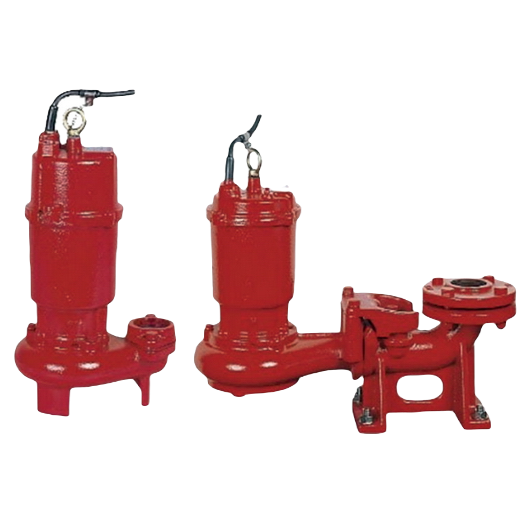

Submersible Water Pump KAWAMOTO Model ZUJ is a durable submersible water pump with design features for efficient and reliable operation. It is suitable for use in sewage and wastewater systems with solids, and features a channel impeller for passing foreign objects. The motor has a built-in auto-cut to prevent motor burnout.
Submersible Water Pump KAWAMOTO

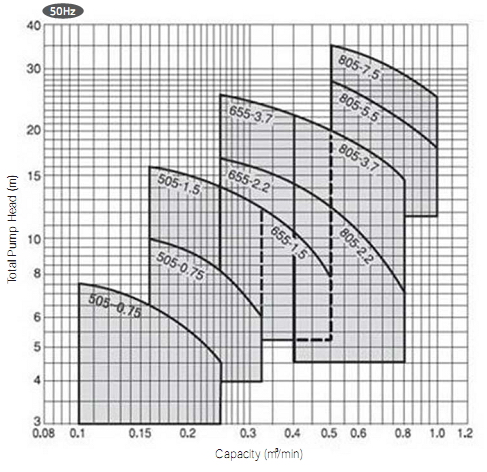

2 POLES / 50 Hz SIZE 50 ～ 80 MM.
| Description | Model: ZUJ/ZU3 | |
|---|---|---|
| Applicable Liquid | Waste water, filthy water and other miscellaneous dirty water | |
| Liquid Temperature | 0-40 °C | |
| pH | 5-9 | |
| Main Pump | Casing | Cast Iron |
| Impeller | Cast Iron | |
| Shaft | Stainless Steel (SUS420J2) | |
| Motor | Speed | 3000 rpm |
| Protection | IP68, Class F | |
| Construction | Shaft Seal | Double mechanical seal Pump: Sic x Sic Motor: Ceramics x Carbon |
| Motor Bearing | Sealed ball bearing | |
| Maximum Submergence | 0.75kw: 5 m 1.5-7.5kw: 8m | |
| Pump Bore (mm) | Solid diameter (mm) | Clothes |
|---|---|---|
| 50 | 35 | - |
| 65 | 35 | - |
| 80 | 40 | - |
| Output (kW) | Phase | Size (mm2) | Core | Outer diameter (mm) | Length (m) |
|---|---|---|---|---|---|
| 0.4 | 1 (Single) | 1.25 | 3 | 10.1 | 6 |
| 0.4 | 3(Three) | 1.25 | 4 | 11 | 6 |
| 0.75 | 3(Three) | 1.25 | 4 | 11 | 6 |
| 1.5 | 3(Three) | 1.25 | 4 | 11 | 10 |
| 2.2 | 3(Three) | 1.25 | 4 | 11 | 10 |
| 3.7 | 3(Three) | 2 | 4 | 11.7 | 10 |
| 5.5 | 3(Three) | 3.5 | 4 | 14 | 10 |
| 7.5 | 3(Three) | 3.5 | 4 | 16.5 | 10 |
