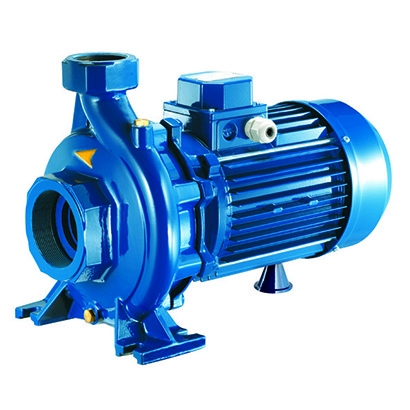

Foras centrifugal pump, SC series. The centrifugal pump is made of high quality cast iron, preventing rust. Resulting in longer service life of the pump The impeller is made of brass, does not rust. Stainless steel shaft SUS 304 does not rust. High corrosion resistance.
Applications
property
Power system
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ghisa |
| Impeller | cast iron |
| Rodete | fundicion |
| Turbine | fonte |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | acciaio AISI 303 |
| Motor shaft | stainless steel AISI 303 |
| Eje motor | acero AISI 303 |
| Arbre moteur | acier AISI 303 |
| Temperatura del liquido | |
| Liquid temperature | 0 – 90 °C |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 6 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | |
| 2 pole induction motor | 3- 230/400V-50Hz |
| Motor de 2 polos a induccion | 1-230V-50Hz |
| Moteur a induction a 2 poles | |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de protección | |
| Protection | |
