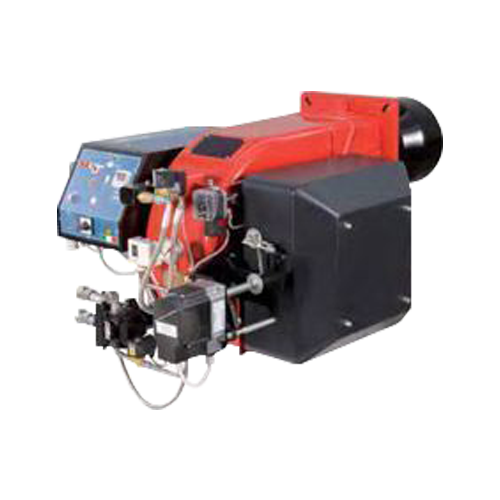

Burner C I B Unigas NOVANTA RG91-RG93 is a light oil burner designed for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Power supply [aux, kW] | Protection class IP |
| RG91 | G-.AB.S.xx.A | 1047 | 2093 | 88 | 176 | 400 | 3Nac 50 | 5.05 | 4 | 0.55 | 0.5 | IP40 |
| RG91 | G-.AB.L.xx.A | 1047 | 2093 | 88 | 176 | 400 | 3Nac 50 | 5.05 | 4 | 0.55 | 0.5 | IP40 |
| RG91 | G-.PR.S.xx.A | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.PR.L.xx.A | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.PR.S.xx.A.EA | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.PR.L.xx.A.EA | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.S.xx.A | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.L.xx.A | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.S.xx.A.EA | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.L.xx.A.EA | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.S.xx.A.ES | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG91 | G-.MD.L.xx.A.ES | 698 | 2093 | 59 | 176 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| RG92 | G-.PR.S.xx.A | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.PR.L.xx.A | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.PR.S.xx.A.EA | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.PR.L.xx.A.EA | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.S.xx.A | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.L.xx.A | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.S.xx.A.EA | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.L.xx.A.EA | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.S.xx.A.ES | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG92 | G-.MD.L.xx.A.ES | 849 | 2558 | 72 | 216 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.PR.S.xx.A | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.PR.L.xx.A | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.PR.S.xx.A.EA | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.PR.L.xx.A.EA | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.S.xx.A | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.L.xx.A | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.S.xx.A.EA | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.L.xx.A.EA | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.S.xx.A.ES | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG93 | G-.MD.L.xx.A.ES | 550 | 4100 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
