nichi Geared trolley type

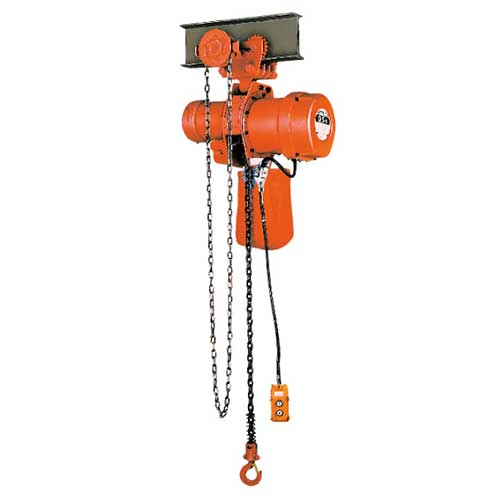

ELECTRIC CHAIN HOIST NITCHI MH-5 SERIES With Geared trolley type

Electric Chain Hoist NICHI MH-5 With Geared trolley high quality products imported from Japan.4-way Available in all models,scale was raised first. 0.5 until 20 tonnes, a power supply at 380V and 220V

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

ELECTRIC CHAIN HOIST NITCHI MH-5 SERIES With Geared trolley type

Featured NITCHI MH-5 SERIES With Geared trolley type

NICHI MH-5 SERIES With Geared trolley type

  • More convenient in combination with trolley With a geared trolley coupled with the MH-5, the MHG-5 allows an operator to move the load in a traversing direction simply by pulling a hand chain.  It is suited for use in an environment where swinging  of a load must be avoided.（MHG-5 Series）
  • Speed change suitable for precision work With a geared trolley coupled with the MHT-5 two-speed electric chain hoist, the MTG-5 allows an operator  to move the load in a traversing direction simply by pulling a hand chain. It is suited for use in an environment where swinging  of a load must be avoided or where two-speed lifting is required for pinpoint positioning. （MTG-5 Series）
  • It can be use 100V home power supply With a geared trolley coupled with the MHC-5 single-phase electric chain hoist, the MCG-5, which runs  on home power supply, can be moved manually  in a traversing direction simply by pulling a hand chain.（MCG-5 Series）



SPECIFICATIONS DATA

Single Speed Electric Chain Hoist

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance
load (t) lift (m) 50Hz 60Hz 50Hz 60Hz beams (kg) source cable button cable hand chain (mm)
b(mm) (m) S(m) I(m) when the hand chain is pulled 1 m
MHG5005 0.5 4 0.83 1 8.6 10 75,100,125 71 0.7 5 3.6 4 229
MHG5010 1 1.17 1.4 6.2 7.3 73 0.9
MHG5020 2 2.5 3 6.7 7.9 100,125,150 126 2.3 3.8 138
MHG5030 3 4.4 5.2 139 3.5 146
4.3 134
MHG5050 5 2.6 3.1 125,150,175 185 13.5
MHG5075 7.5 1.7 2.1 150,175 280 30 4 4.6 103
MHG5100S 10(one hoist type) 1.3 1.6 300 37
MHG5100W 10(two hoists type) 2.5×2 3.0×2 2.6 3.1 380
MHG5150 15 1.7 2.1 175 755 77 4.2 4.8 80
MHG5200 20 1.3 1.6 920 110 4.3 4.8 44



SPECIFICATIONS DATA

Dual Speed Electric Chain Hoist

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance (mm)
load (t) lift (m) fast speed slow speed fast speed slow speed beams (kg) source cable button cable hand chain when the hand
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz b(mm) (m) S(m) I(m) chain is pulled 1 m
MTG5005 0.5 4 0.83 1 0.21 0.25 8 9.4 1.9 2.2 75,100,125 73 0.7 5 3.6 4 229
MTG5010 1 4.3 5 1 1.2 75 0.9
MTG5020 2 1.83 2.2 0.46 0.55 4.8 5.6 1.2 1.4 100,125,150 129 2.3 3.8 138
MTG5025 2.5 3.8 4.4 1 1.1 142 3.5 146
4.3 134
MTG5050 5 1.9 2.2 0.5 0.6 125,150,175 188 13.5



SPECIFICATIONS DATA

Single Speed 1-phase Electric Chain Hoist

Item no. Rated Standard Motor output Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance (mm)
load (t) lift (m) （kW） 50Hz 60Hz beams (kg) source cable button cable hand chain when the hand
b(mm) (m) S(m) I(m) chain is pulled 1 m
MCG5005 0.5 4 0.62 5.4 6.4 75,100,125 83 0.7 5 3.6 4 229
MCG5010 1 2.7 3.2 0.9
