Electric Mini Chain Hoist DUKE DU-901 Series

  • Model No. : DU-901
  • Certification : ISO 9001 ,CE ,TUV
  • Made in : Taiwan, ROC
Facebook
Twitter
Email
Print

Electric Mini Chain Hoist DUKE DU-901 Series

Electric Mini Chain Hoist Multi-functions. Multi-Purposes

Key Features

Model:DU-901
Capacity(kg):500kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Gear Brake.

2) Rugged Alloy Body Construction Provide Lightweight,  Compact & Short Headroom.

3) Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4) All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.

Features:

  • Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
  • Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
  • Loading sheave: Provide smooth lifting, reduce vibration and wear.
  • Housing: Lightweight, cast aluminum alloy
  • Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
  • Chain: Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.

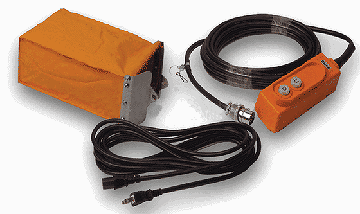

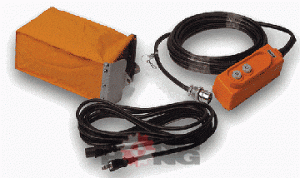

  • Chain bag: The vinyl chain bag container is provided standard with hoist.
  • Switch: Simply layout of the control with 3M power cable as standard and emergency stop as option.



MODEL CAPACITY (KG) STANDARD LIFT (M) Power(Voltage) CYCLE (HZ) MOTOR POWER (Kw) LIFTING SPEED (M/MIN.) CHAIN DIA. (mm)
DU-901 500 3 100V-120V 50/60 1.3 6-May Ø6.3
200V-240V

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan.
We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”.
Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.

Products range are :

AC power:

  • Electric mini chain hoist
  • Electric mini wire winch
  • Electric wire winch
  • Electric chain hoist
  • Electric all-purpose wire winch.

DC power:

  • OFF-ROAD winch..
