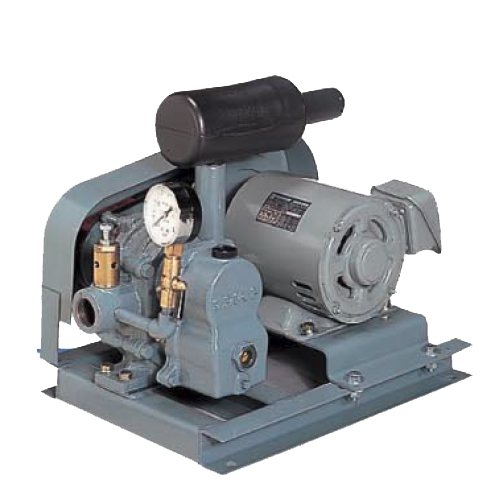

VACUUM THREE LOBES BLOWER ANLET BSS Series
ANLET THREE LOBES BLOWER BSS-SERIES The three-lobes blower with helical casing offers a vertuallyno noise, no vibration operation. There is no oil mixing, so theair obtained is clean, with no spraying of oil mist to soil the environment.
Facebook
Twitter
Email
Print
VACUUM THREE LOBES BLOWER ANLET BSS Series
SPECIFICATIONS DATA
| MODEL | Bore | min-1 | 1020mmAq | 2040mmAq | 3060mmAq | 4080mmAq | 5100mmAq | |||||
| m3/min | kW | m3/min | kW | m3/min | kW | m3/min | kW | m3/min | kW | |||
| ANLET BSS20 | 3/4 B | 1750 | 0.24 | 0.25 | 0.21 | 0.29 | 0.18 | 0.33 | 0.15 | 0.38 | 0.12 | 0.45 |
| 2000 | 0.3 | 0.28 | 0.27 | 0.33 | 0.24 | 0.38 | 0.21 | 0.44 | 0.18 | 0.51 | ||
| ANLET BSS25 | 1B | 2300 | 0.36 | 0.32 | 0.33 | 0.38 | 0.3 | 0.44 | 0.27 | 0.51 | 0.24 | 0.58 |
| 2600 | 0.43 | 0.36 | 0.4 | 0.42 | 0.37 | 0.49 | 0.34 | 0.57 | 0.31 | 0.66 | ||
| 3000 | 0.52 | 0.42 | 0.49 | 0.49 | 0.46 | 0.57 | 0.43 | 0.66 | 0.4 | 0.76 | ||
| ANLET BSS32 | 1 1/4B | 2300 | 0.57 | 0.46 | 0.53 | 0.54 | 0.49 | 0.63 | 0.45 | 0.73 | 0.41 | 0.84 |
| 2600 | 0.67 | 0.52 | 0.63 | 0.61 | 0.59 | 0.71 | 0.55 | 0.82 | 0.51 | 0.94 | ||
| 3000 | 0.8 | 0.6 | 0.76 | 0.7 | 0.72 | 0.82 | 0.68 | 0.95 | 0.64 | 1.09 | ||
| ANLET BSS40 | 1 1/2 B | 2300 | 0.81 | 0.63 | 0.76 | 0.07 | 0.71 | 0.87 | 0.66 | 1.01 | 0.61 | 1.15 |
| 2600 | 0.94 | 0.71 | 0.89 | 0.84 | 0.84 | 0.99 | 0.79 | 1.14 | 0.74 | 1.3 | ||
| 3000 | 1.12 | 0.82 | 1.07 | 0.97 | 1.02 | 1.14 | 0.97 | 1.32 | 0.92 | 1.5 | ||
