An electrical system refers to a network of electrical components that are interconnected and designed to work together to achieve a specific purpose. Electrical systems can be found in a wide range of applications, from power distribution and lighting in buildings to automotive and aerospace systems.
An electrical system typically includes various components, such as wires, cables, connectors, switches, transformers, generators, motors, batteries, and electronic circuits. These components work together to enable the flow of electric current through the system, which can be used to power various devices and systems.
Electrical systems can be designed for different purposes, depending on the application. For example, a power distribution system in a building may be designed to deliver electrical power to various devices and appliances, while a control system in a manufacturing plant may be designed to monitor and control the operation of machines and equipment.
Designing and maintaining an electrical system requires specialized knowledge and expertise, as well as adherence to safety standards and regulations. Electrical systems can pose a safety risk if not designed and maintained properly, which is why it’s essential to have trained professionals oversee their installation and maintenance.

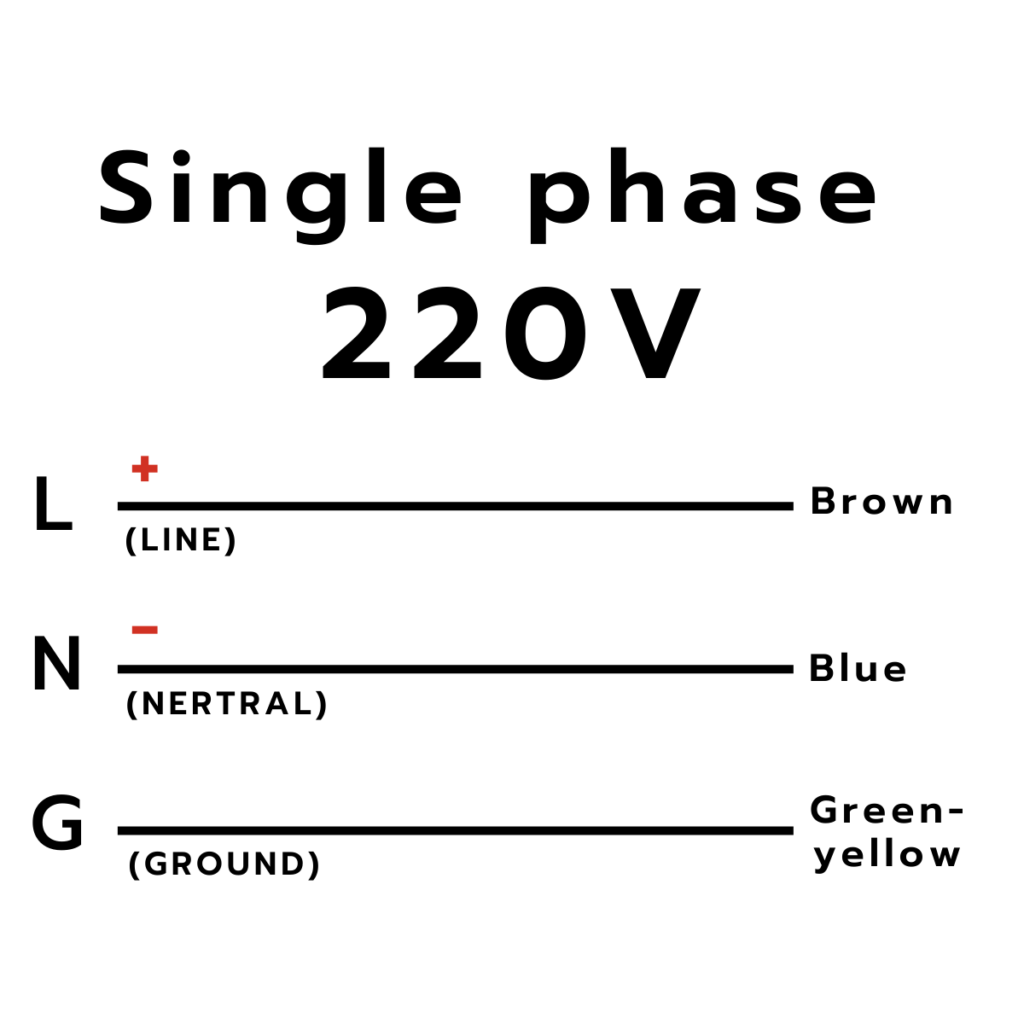

Electrical system Single phase ( 220V )
Single phase refers to a type of electrical power distribution in which power is supplied through a single alternating current (AC) circuit. In a single-phase system, there is one live wire and one neutral wire, and the voltage oscillates between positive and negative values in a sine wave pattern.
Single-phase power is commonly used in households and small businesses, where the power requirements are relatively low. However, for larger industrial applications, three-phase power is more commonly used as it is more efficient and can supply more power.
Some common single-phase applications include lighting, small motors, and household appliances such as refrigerators, air conditioners, and computers.
Electrical system Three phase (380V)
Three-phase power is a type of electrical power transmission that uses three conductors carrying alternating current (AC) voltages that are offset in time by one-third of a cycle. This type of power transmission is used in a variety of applications, including power distribution, electric motors, and industrial machinery.
In a three-phase system, the power is distributed across three separate conductors, each carrying an alternating current waveform that is offset from the other two by 120 degrees. This results in a more efficient and reliable power transmission system compared to single-phase power, which uses only one conductor to carry the current.
Three-phase power is commonly used in industrial and commercial applications because it provides a more constant and stable source of power, reduces the need for large transformers, and allows for the use of high-powered equipment such as large motors and heavy machinery.
To take advantage of three-phase power, devices and machinery must be designed to operate on this type of power. This often involves the use of specialized equipment such as three-phase motors and controllers.
